CVVT & Camshaft: Inspection: Installation
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Install the intake CVVT (A) to the intake camshaft.
Tightening Torque:
63.7 - 73.5 N.m (6.5 - 7.5 kgf.m, 47.0 - 54.2 lb-ft)
Information
- When installing the CVVT bolt, hold the hexagonal portion (B) on the camshaft with a wrench to prevent the camshaft from rotating.
- Install the intake CVVT & camshaft (A), with the timing mark on the intake CVVT sprocket aligned with the mark (painted link) on the timing chain.
- Install the exhaust CVVT (A), with the timing mark on the exhaust CVVT sprocket aligned with the mark (painted link) on the timing chain.

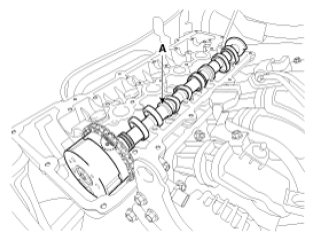

- Install the exhaust camshaft (A) to the exhaust CVVT.
Tightening Torque:
63.7 - 73.5 N.m (6.5 - 7.5 kgf.m, 47.0 - 54.2 lb-ft)

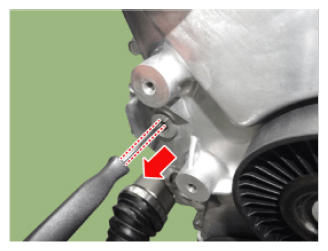

- Remove the pick from the service hole in the timing chain cover.

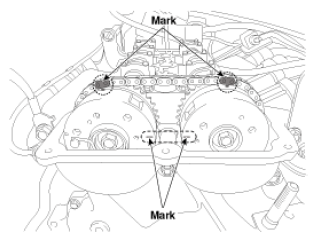

- Check that each timing mark of the intake and exhaust CVVT sprockets is aligned as displayed in image.

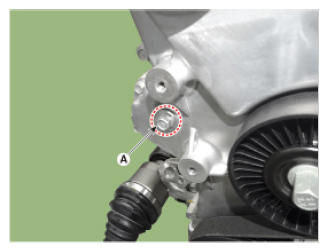

- Install the bolt (A) to the service hole in the timing chain cover.
Tightening Torque:
27.5 - 30.4 N.m (2.8 - 3.1 kgf.m, 20.3 - 22.4 lb-ft)

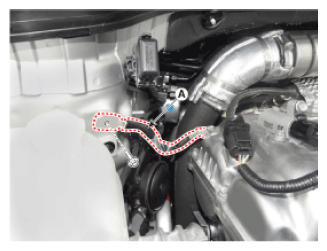

- Install the engine mounting support bracket.
(Refer to Engine and Transaxle Assembly - "ENGINE MOUNTING ")

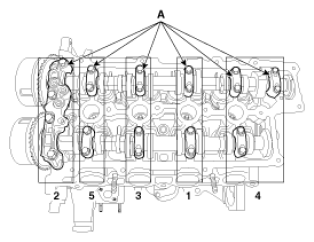

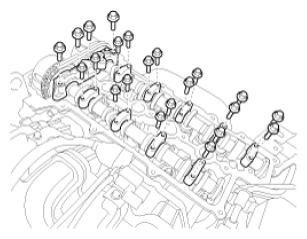

- Install the camshaft bearing caps (A) in the order displayed in image and tighten the bolts to the specified torque.
Tightening Torque
1st step
M6 bolt: 5.9 N.m (0.6 kgf.m, 4.3 lb-ft)
M8 bolt: 9.8 N.m (1.0 kgf.m, 7.2 lb-ft)
2nd step
M6 bolts:
11.8 - 12.7 N.m (1.2 - 1.3 kgf.m, 8.7 - 9.4 lb-ft)
M8 bolts:
18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb-ft)

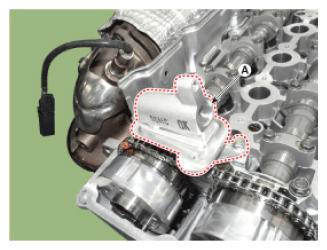

- Install the exhaust oil control valve (OCV) adaptor (A).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
NOTE:- Check that the front camshaft bearing cap O-ring is properly seated in place when installing the OCV adaptor.
- Install the cylinder head cover.
(Refer to Cylinder Head Assembly - "CYLINDER HEAD COVER ")
