Roof Trim Assembly: Replacement

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the front seat.

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

  2. Remove the rear seat.

    (Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

  3. Remove the front pillar trim.

    (Refer to Interior Trim - "FRONT PILLAR TRIM ")

  4. Remove the center pillar lower trim.

    (Refer to Interior Trim - "CENTER PILLAR TRIM ")

  5. Remove the center pillar upper trim.

    (Refer to Interior Trim - "CENTER PILLAR TRIM ")

  6. Remove the rear pillar trim.

    (Refer to Interior Trim - "REAR PILLAR TRIM ")

  7. Remove the sunvisor and retainer.

    (Refer to Roof Trim - "SUNVISOR ")

  8. Remove the assist handle.

    (Refer to Roof Trim - "ASSIST HANDLE ")

  9. Remove the overhead console lamp.

    (Refer to Body Electrical System - "OVERHEAD CONSOLE LAMP ")

  10. Remove the room lamp.

    (Refer to Body Electrical System - "ROOM LAMP ")

  11. Remove the ECM mirror connector.

    (Refer to Body Electrical System - "ELECTRO CHROMIC INSIDE REAR VIEW MIRROR ")

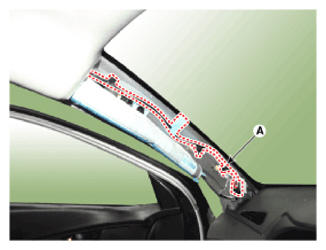

  12. Disconnect the roof trim main connector (A) and the mounting clips in the front pillar.
    G12603157Courtesy of HYUNDAI MOTOR AMERICA

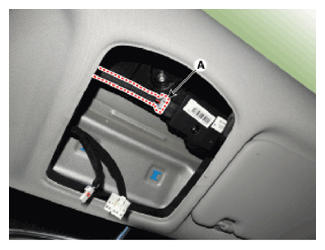

  13. Disconnect the sunroof motor connector (A).
    G12603158Courtesy of HYUNDAI MOTOR AMERICA

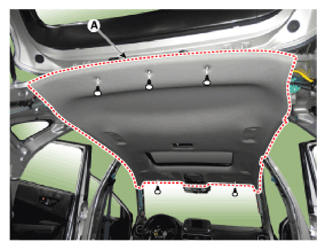

  14. Remove the roof trim mounting clip and remove the roof trim assembly (A).
    NOTE:
    • Be careful not to wrinkle on the roof trim.
    G12603159Courtesy of HYUNDAI MOTOR AMERICA

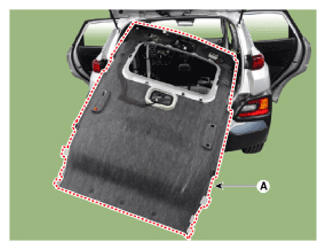

  15. Carefully remove the liftgate weatherstrip.
  16. Remove the roof trim assembly (A) from the vehicle through the liftgate.
    CAUTION:
    • Take care not to damage the roof trim when removing.
    G12603160Courtesy of HYUNDAI MOTOR AMERICA
  17. Remove the vanity lamp.

    (Refer to Body Electrical - "VANITY LAMP ")

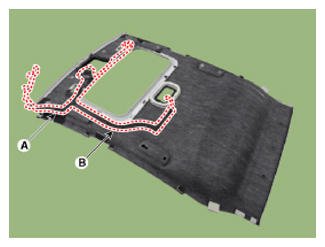

  18. Remove roof trim wiring harness (A) from the roof trim (B).
    NOTE:
    • Take care not to damage the roof trim wiring harness (A) when removing.
    G12603161Courtesy of HYUNDAI MOTOR AMERICA

    Information

    1. When installing the roof trim wiring harness (A) on the roof trim, apply the hot melt continuously by using the hot melt gun tool.
    2. Put anti-noise pad on roof trim to prevent the noise.
  19. To install, reverse removal procedure.

    Information

    • Make sure the connector is connected in properly.
    • Replace any damaged clips.
