Repair Procedures: Replacement
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If necessary replace the valve body or solenoid valves, hydraulic adjustment is needed, replace the automatic transaxle assembly.
(Refer to Automatic Transaxle System-"AUTOMATIC TRANSAXLE ")

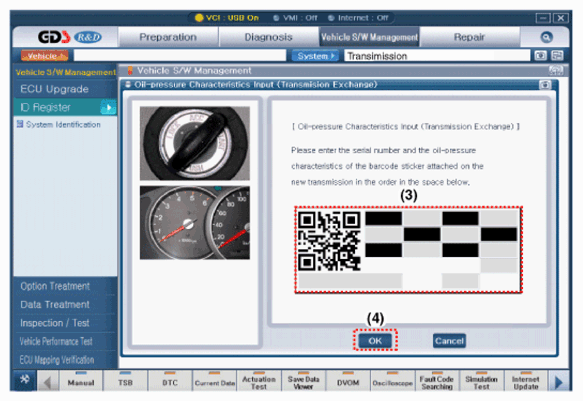

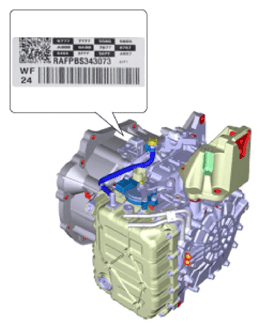

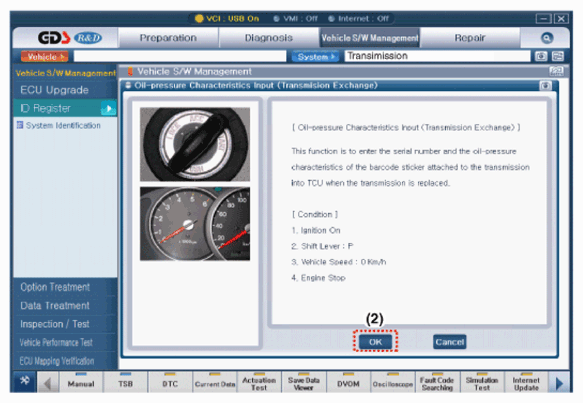

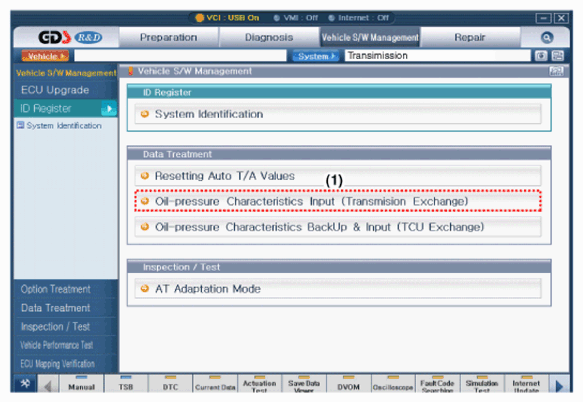

After the automatic transaxle assembly exchange, input the hydraulic calibration information of TCM.
