Repair Procedures: Removal
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- When the solenoid valve Diagnostic Trouble Codes (DTC) is on, perform the following procedure to replace it.
- Automatic transaxle is composed of delicate components. Be careful not to cause any damage on the component in the course of assembly and disassembly.
- Maintain clean condition so that foreign substance does not get into the automatic transaxle.
- Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transaxle.
- Automatic transaxle fluid (ATF) can be reused. Collect it using a clean 10-liter beaker.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the air duct and air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Discharge the coolant. (if equipped ATF warmer)
- Discharge the automatic transaxle fluid (ATF).
(Refer to Automatic Transaxle System - "AUTOMATIC TRANSAXLE FLUID ")

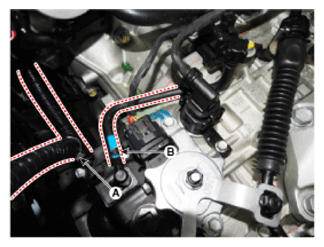

- Disconnect the clip (A) for fixing wiring from the valve body cover.
- Remove the air bleeder hose (B) after removing the clamp.

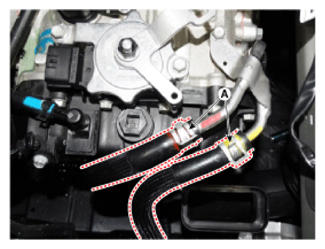

- Disconnect the ATF cooler hose (A).CAUTION:
- Be careful not to cause any damage on the hose when tightening the clamp.
- Mount the clamp tightening part in the designated direction so that interference does not occur with the adjacent parts.
- After connecting the hose, check for oil leakage on the connecting part while the engine is on.
- Unscrew the bolts and remove the valve body cover (A).
Tightening Torque:
11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb-ft)
CAUTION:- When re-mounting the valve body cover, replace the gasket with a new one.
- After mounting the valve body cover, check for oil leakage on the connecting part while the engine is on.
- Unscrew the bolts and disconnect the solenoid valve connector (A).
- Remove the support bracket mounting bolt (A).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
- Remove the support bracket (A).
- Remove the bolt (B).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

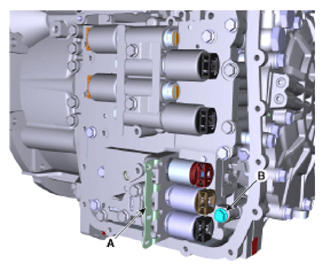

- Remove the line pressure control solenoid valve (A).
