Component Location (2) Solenoid Valve

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

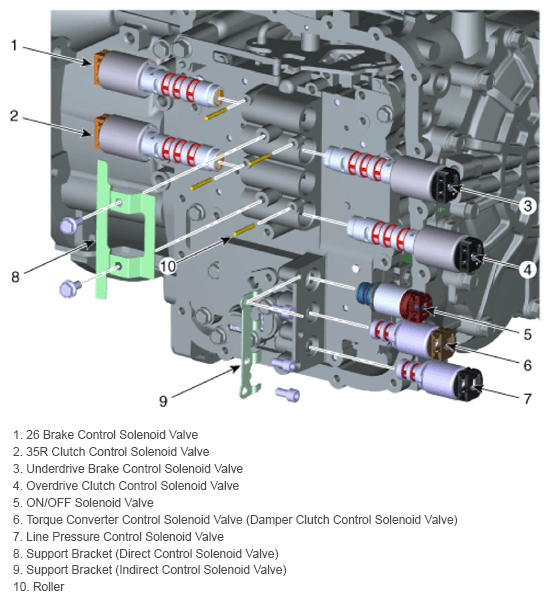

Fig 1: Locating Solenoid Valve Components
G12607110Courtesy of HYUNDAI MOTOR AMERICA
