Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When the solenoid valve Diagnostic Trouble Codes (DTC) is on, perform the following procedure to replace it.
Automatic transaxle is composed of delicate components. Be careful not to cause any damage on the component in the course of assembly and disassembly.
Maintain clean condition so that foreign substance does not get into the automatic transaxle.
Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transaxle.
Automatic transaxle fluid (ATF) can be reused. Collect it using a clean 10-liter beaker.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the air duct and air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Discharge the coolant. (if equipped ATF warmer)
Discharge the automatic transaxle fluid (ATF).
(Refer to Automatic Transaxle System - "AUTOMATIC TRANSAXLE FLUID ")

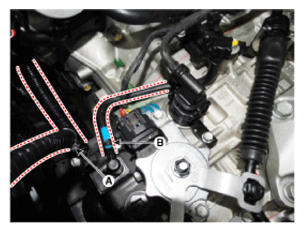

Disconnect the clip (A) for fixing wiring from the valve body cover.
Remove the air bleeder hose (B) after removing the clamp.

Courtesy of HYUNDAI MOTOR AMERICA

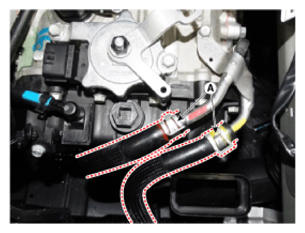

Disconnect the ATF cooler hose (A).

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Be careful not to cause any damage on the hose when tightening the clamp.
- Mount the clamp tightening part in the designated direction so that interference does not occur with the adjacent parts.
- After connecting the hose, check for oil leakage on the connecting part while the engine is on.
Unscrew the bolts and remove the valve body cover (A).
Tightening Torque:

11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- When re-mounting the valve body cover, replace the gasket with a new one.
- After mounting the valve body cover, check for oil leakage on the connecting part while the engine is on.
Courtesy of HYUNDAI MOTOR AMERICA
Unscrew the bolts and disconnect the solenoid valve connector (A).
Tightening Torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb - ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the support bracket (A).
Tightening Torque:

9.8 - 11.8N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the roller (A) and bolt (B).
Tightening Torque:

9.8 - 11.8N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the 26 brake control solenoid valve (A).

Courtesy of HYUNDAI MOTOR AMERICA
