Repair Procedures: Inspection
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Turn off the ignition switch.
- Remove the air duct and air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")

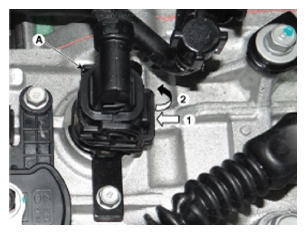

- Disconnect the solenoid valve connector (A).
- Measure the resistance between solenoid valve signal terminal and ground terminal.
(Refer to Schematic Diagrams - CIRCUIT DIAGRAM )
- Check that the measured resistance is within the specification.
(Refer to SPECIFICATIONS )
