Component Location (1) Valve Body Cover

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

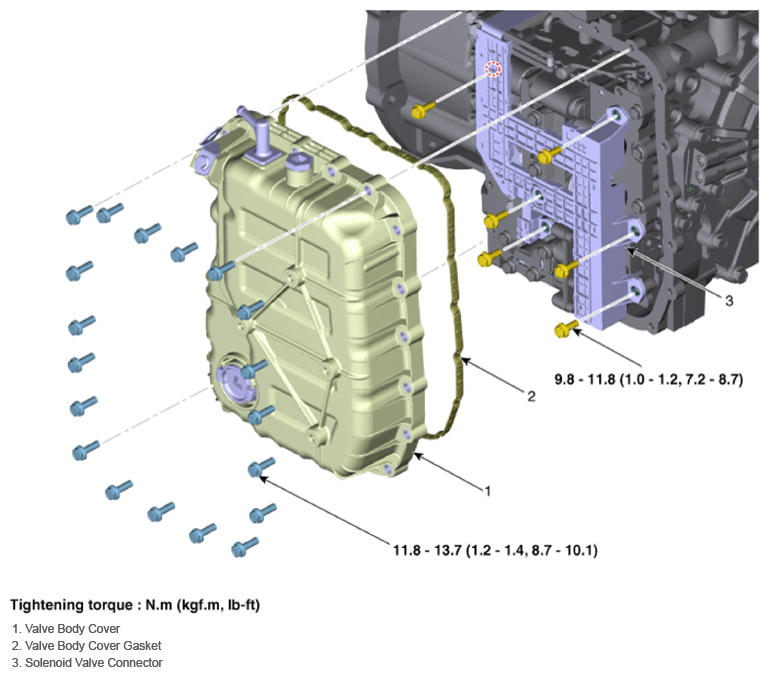

Fig 1: Valve Body Cover Components With Torque Specification
G12607073Courtesy of HYUNDAI MOTOR AMERICA
