Glass Adjustment

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Information

Check the glass run channel for damage or deterioration, and replace them if necessary.

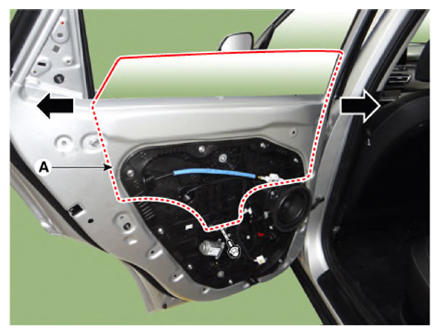

Remove the rear door trim.
(Refer to Rear Door - "REAR DOOR TRIM ")

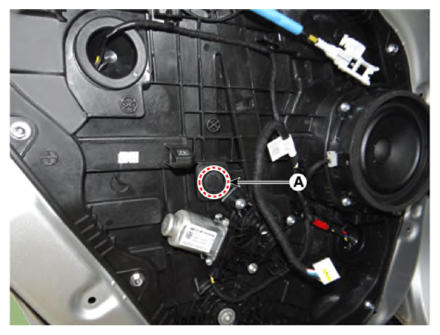

Remove the plug hole (A).

Courtesy of KIA MOTORS AMERICA, INC.
Carefully move the rear door window glass (A) until the glass mounting bolts are visible, then loosen them.

Courtesy of KIA MOTORS AMERICA, INC.
Check that the glass moves smoothly.
