Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without damaging the surface.
Be careful not to bend or scratch the trim and panels.

Remove the rear door window glass.
(Refer to Rear Door - "REAR DOOR WINDOW GLASS ")

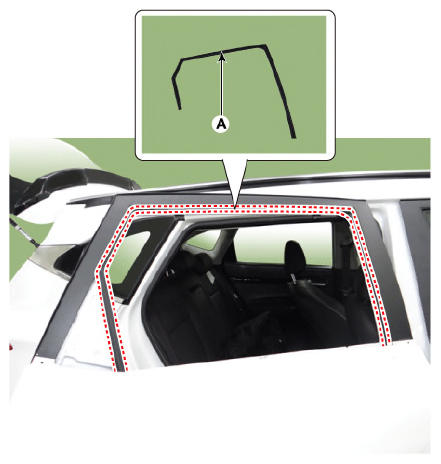

Remove the rear door window glass run (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
