Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without damaging the surface.
Be careful not to bend or scratch the trim and panels.

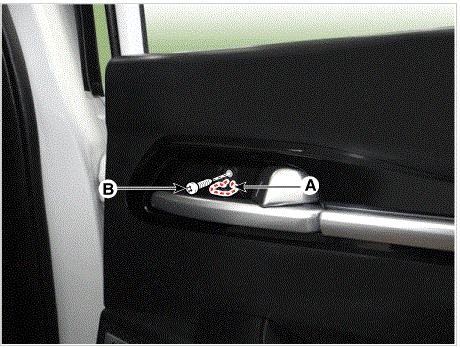

Remove the cap (A) and then loosen the screw (B).
Tightening Torque: 4.9 - 5.9 N.m (0.4 - 0.5 kgf.m, 2.9 - 3.6 lb.ft, 34.7 - 43.4 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

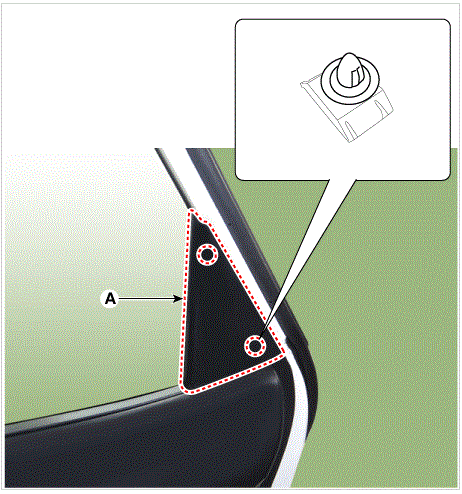

Using a screwdriver or remover, remove the rear door delta inner cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

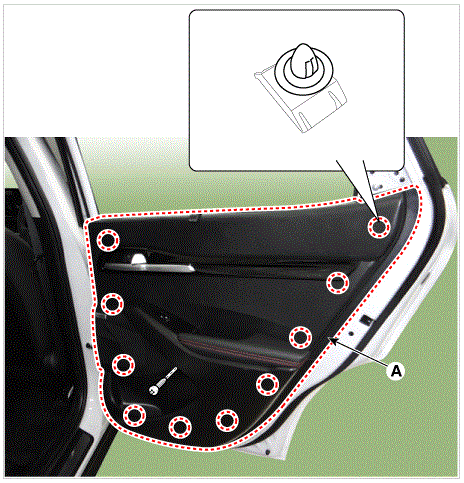

Using a screwdriver or remover, remove the rear door trim (A).
Tightening Torque: 4.9 - 5.9 N.m (0.4 - 0.5 kgf.m, 2.9 - 3.6 lb.ft, 34.7 - 43.4 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.

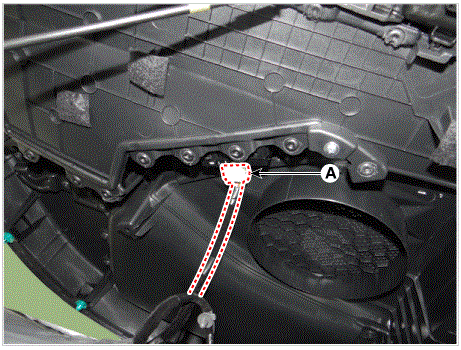

Remove the rear door inside handle cage (A).

Courtesy of KIA MOTORS AMERICA, INC.

Information

Cage must be assembled until it makes clicks sound.

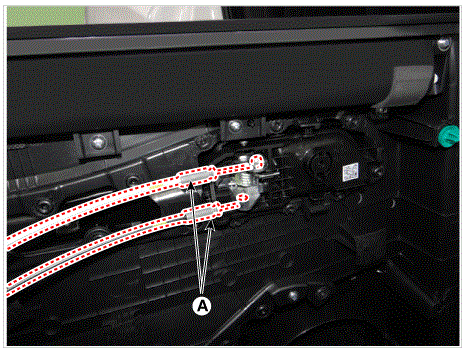

Disconnect the connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information
- Check that glass operation is normal.
- Check the damage glass channel, and replace if necessary.
- Adjust glass if necessary.
