Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

[Rear door side weatherstrip]

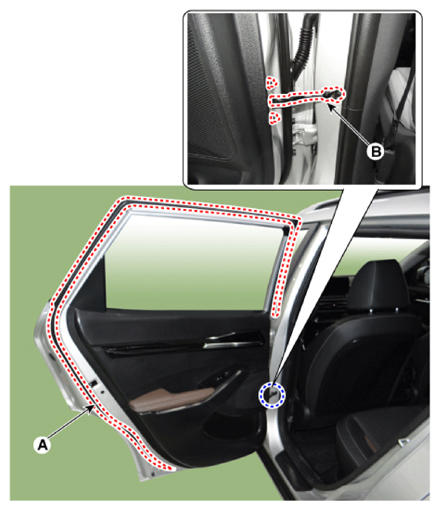

Loosen the rear door checker (B) mounting bolt.
Tightening torque:

16.7 - 21.6 N.m (1.7 - 2.2 kgf.m, 12.3 - 15.9 lb.ft)
Detach the clips, remove the rear door side weatherstrip (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information

Replace any damaged clips.

[Rear door body side weatherstrip]

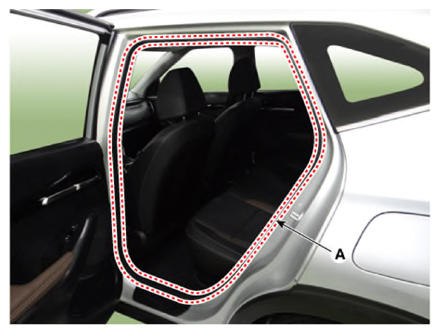

Detach the clips, then remove the rear door body side weatherstrip (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
