Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without damaging the surface.
Take care not to bend or scratch the trim and panels.

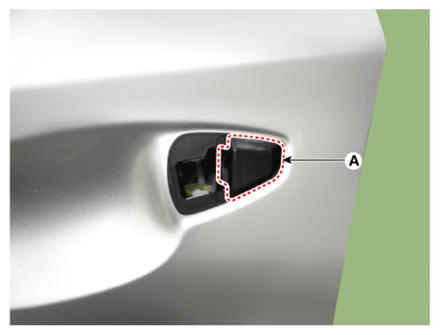

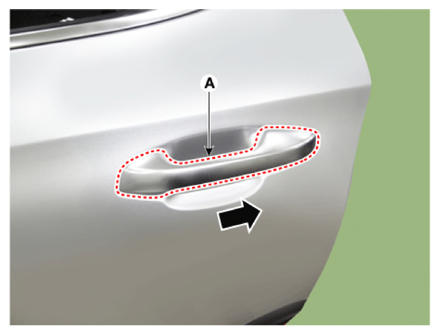

Remove the plug hole and loosen the mounting bolt, remove the rear door outside handle (A).
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf-m, 2.9 - 4.3 lb.ft, 34.7 - 52.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear door lock assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information
- Make sure that the connector is connected properly.
- Make sure that the door locks/unlocks and opens/closes properly.

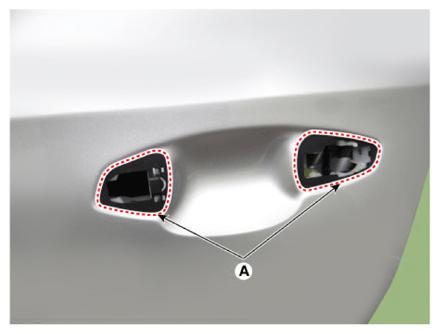

- Be sure to install the outside handle pad (A) between the outside handle and the door panel.

Courtesy of KIA MOTORS AMERICA, INC.
