Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Put on gloves to protect your hands.

Information

Use a plastic panel removal tool to remove interior trim pieces without damaging the surface.
Be careful not to bend or scratch the trim and panels.

Remove the rear door module.
(Refer to Rear Door - "REAR DOOR MODULE ")

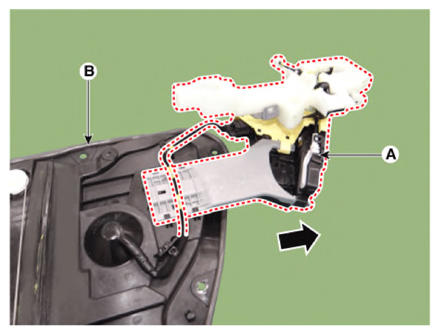

Remove the rear door latch (A) from the module (B) by pushing it in the direction of the arrow.

Courtesy of KIA MOTORS AMERICA, INC.

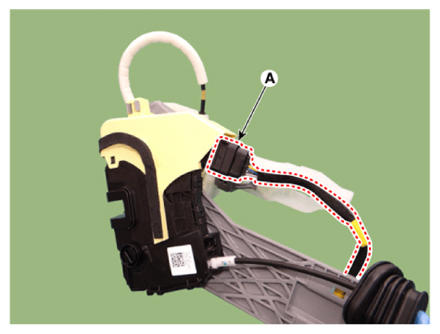

Disconnect the rear door latch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

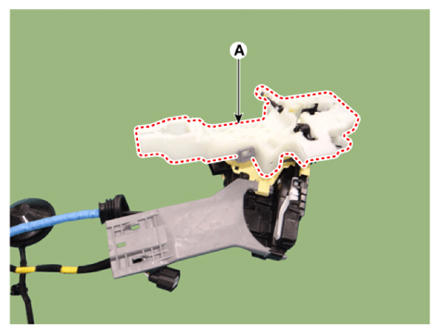

Remove the rear door outside handle base bracket (A).

Courtesy of KIA MOTORS AMERICA, INC.

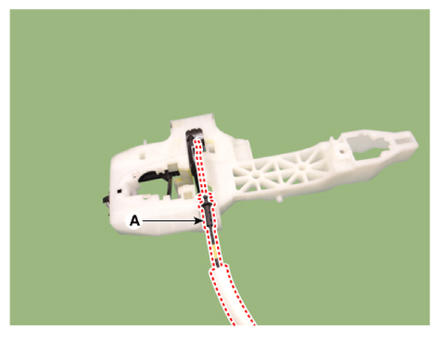

Loosen the rear door outside handle cable (A) and remove the rear door outside handle base.

Courtesy of KIA MOTORS AMERICA, INC.
To install, reinstall in reverse order of removal procedure.
Information
- Check that glass operation is normal.
- Check the damage glass channel, and replace if necessary.
- Adjust glass if necessary.
