Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim.

    (Refer to Rear Door - "REAR DOOR TRIM ")

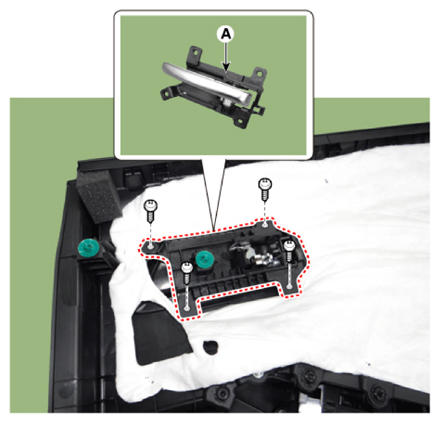

  2. Loosen the mounting screws and remove the rear door inside handle (A).
    G13481945Courtesy of KIA MOTORS AMERICA, INC.
  3. To install, reinstall in reverse order of removal procedure.

    Information

    • Make sure the door locks/unlocks and opens/closes properly.
    • Replace any damaged clips (or pin-type retainers).
