Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Pull down the rear door window glass to the lowest level by pressing the power window glass switch.

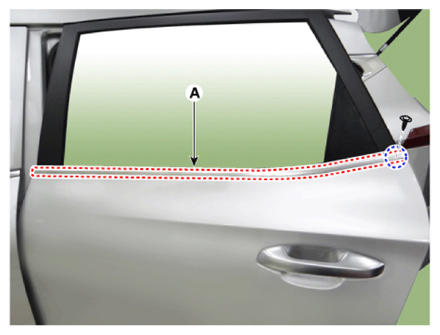

  2. After loosening the mounting screw, remove the rear door belt outside weatherstrip (A).
    G13481968Courtesy of KIA MOTORS AMERICA, INC.
  3. To install, reinstall in reverse order of removal procedure.

    Information

    Replace any damaged clips.
