Repair Procedures: Installation
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Before installation, wipe the surface (A) with a clean cloth.
- Check the O-rings (A-2ea) of the new hydraulic motor (actuators).NOTE:
- You have to prevent any dust from entering inside hydraulic motors (actuators) and housing.
- After mounting the hydraulic motor (actuator) (A), tighten the bolts.NOTE:
- When installing, motor connector has to toward in the direction of outside of the coupling.
Tightening Torque:
8.8 - 10.8 N.m (0.9 - 1.1 kgf.m, 6.5 - 8.0lb-ft)
NOTE:- When installing, oil can be reflex by the pressure in air breather hole (A).

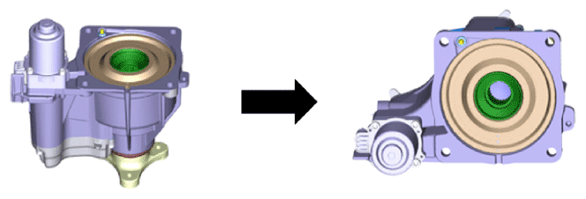

- Change direction in the direction of the arrow and lay on the floor as displayed in the image.
- The reflex oil will flow to the bottom.
- You have to prevent additional backflow in according to order as displayed in the image.
- Wipe the flowed oil to around the surface with a clean cloth.
