Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

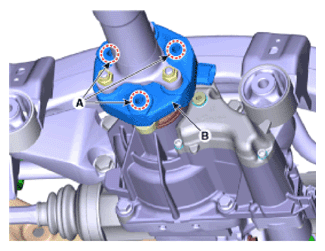

Loosen the 4WD coupling assembly bolts (A-3ea) mounted to the rear propeller shaft (B).
Tightening Torque:

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.1 - 47.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Using a flat tool, separate the propeller shaft from the 4WD coupling assembly.

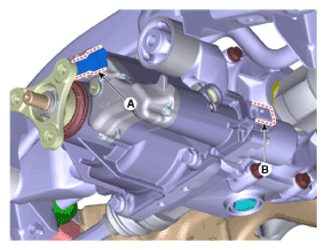

Disconnect the pressure sensor connector (A) and oil hydraulic motor connector (B).

Courtesy of HYUNDAI MOTOR AMERICA

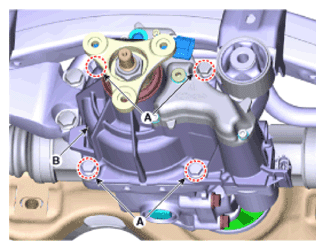

Loosen the coupling assembly mounting bolts (A-4ea).

Separate the 4WD coupling assembly (B) from the rear differential assembly using a rigid rod.

Tightening Torque:

56.9 - 64.7 N.m (5.8 - 6.6 kgf.m, 41.9 - 47.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

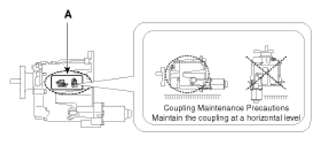

Coupling Maintenance Precautions

Maintain the coupling at a horizontal level.

Refer to the handling caution level (A) when servicing the coupling (removal, installation, replacement, etc.).

Courtesy of HYUNDAI MOTOR AMERICA

Always maintain a horizontal posture.

Courtesy of HYUNDAI MOTOR AMERICA
