Circuit Diagram
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Terminal Operation
| Terminal |
Operation |
| 1 |
CAN LOW |
| 2 |
CAN HIGH |
| 3 |
- |
| 4 |
Pressure sensor signal |
| 5 |
- |
| 6 |
Lock mode switch |
| 7 |
Motor B |
| 8 |
Motor A |
| 9 |
- |
| 10 |
- |
| 11 |
Pressure sensor power |
| 12 |
Pressure sensor (Ground) |
| 13 |
Battery voltage |
| 14 |
Ground |
| 15 |
IG. 1 |
| 16 |
- |
| 17 |
- |
| 18 |
- |

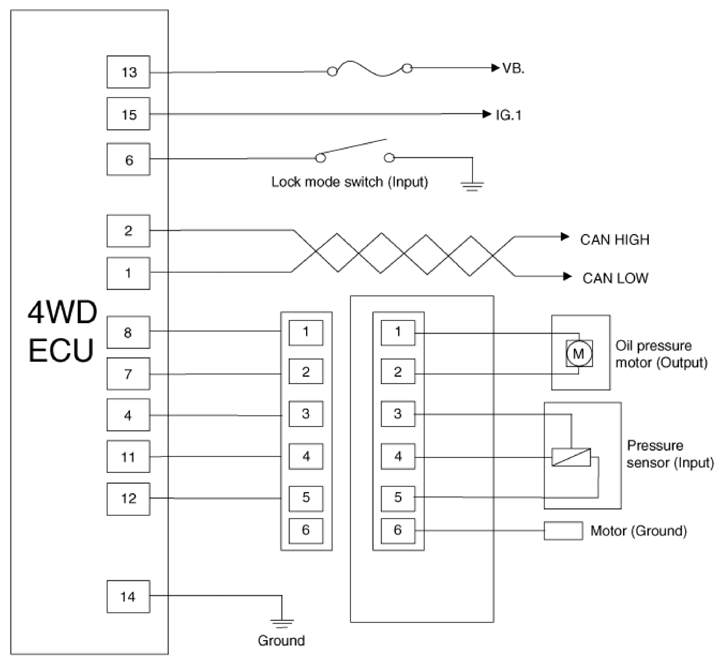

- Schematic Diagram
 Courtesy of HYUNDAI MOTOR AMERICA
|
