Repair Procedures: Replacement

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.

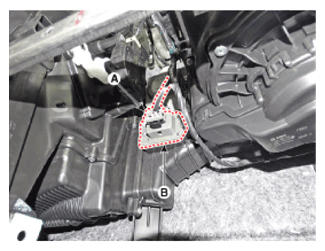

  2. Disconnect the connector (A) and then remove the blower resistor (B) after loosening the mounting screws.
    G12606334Courtesy of HYUNDAI MOTOR AMERICA
  3. Installation is the reverse order of removal.
