General Mirror

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Put on gloves to prevent hand injuries.
  1. Loosen the inside rear view mirror mounting screw.

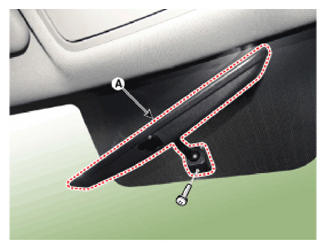

  2. Loosen the mounted screws and push the ECM mirror base upward to remove the ECM mirror assembly (A).
    G12603056Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse the removal procedure.
