ECM Mirror
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Put on gloves to prevent hand injuries.

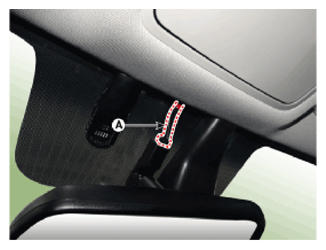

- Remove the ECM mirror cover (A).

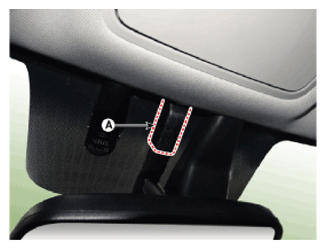

- Disconnect the ECM mirror connector (A).

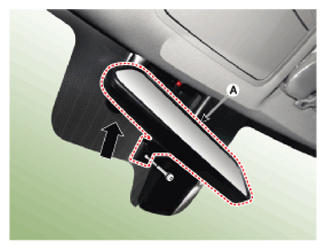

- Loosen the mounted screws and push the ECM mirror base upward to remove the ECM mirror assembly (A).
- To install, reverse removal procedure.
Information
- Make sure the connector is connected properly.
- Be careful not to damage the windshield glass.
