Repair Procedures: Installation
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

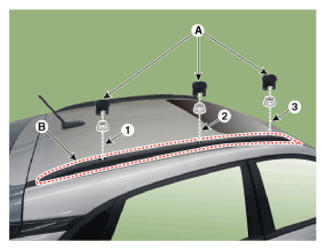

- Install the roof rack assembly (B).
Tightening Torque:
3.9 - 4.4 N.m (0.4 - 0.45 kgf.m, 2.9 - 3.3 lb-ft)
Information
- Tighten mounting nuts as (1) - (3) order.
- Install the roof rack side cap (A).
Courtesy of HYUNDAI MOTOR AMERICA
