Head Lamp Aiming Instructions: Bifunctional
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

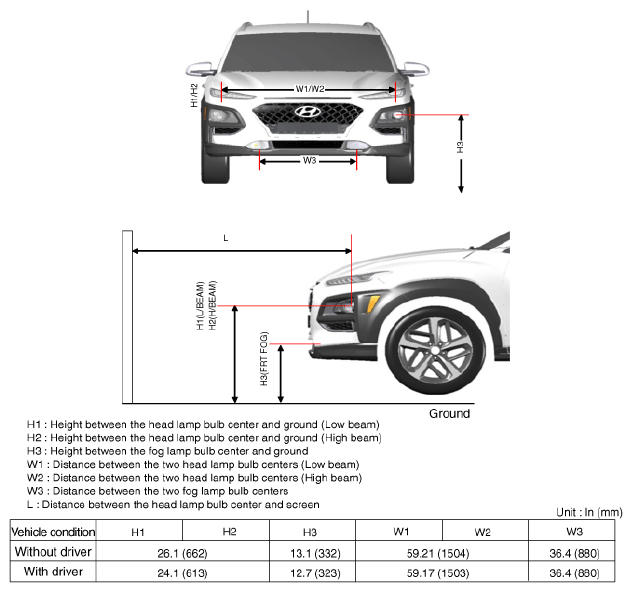

- Head Lamp (Low Beam)
- Turn the low beam on without driver aboard.

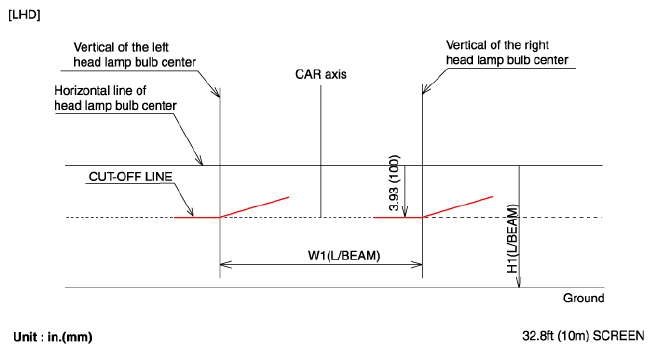

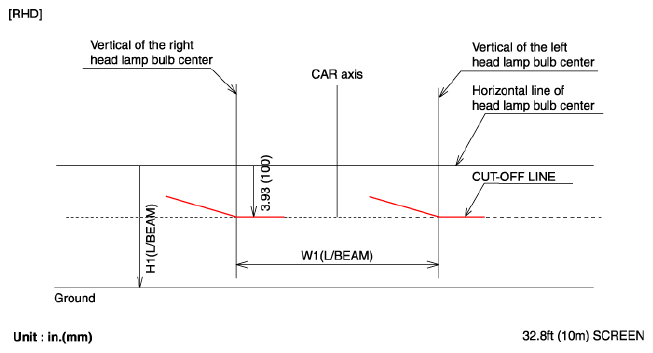

- The cut-off line should be projected in the cut-off line displayed in image.
- If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.
- Head Lamp (High Beam)
- Turn the high beam on without driver aboard.

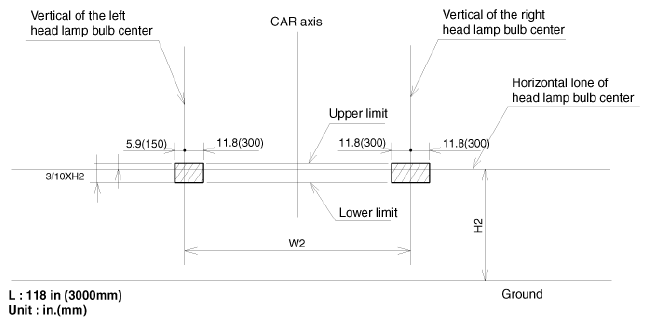

- The cut-off line should be projected in the cut-off line displayed in image.
- When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
- If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.
- Turn the front fog lamp on without the driver aboard.

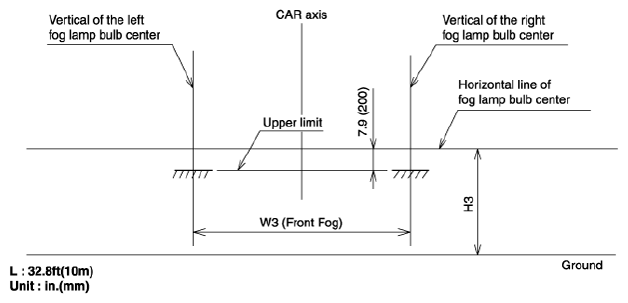

The cut-off line should be projected in the allowable range (shaded region)
