Removal And Installation
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the seat assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

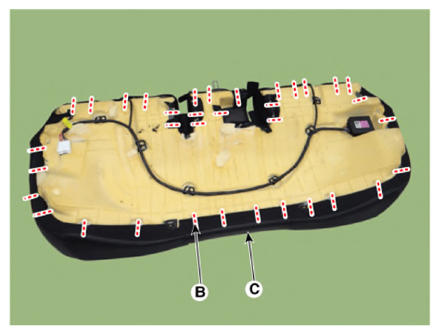

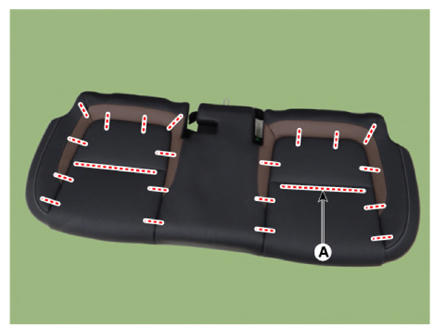

- After removing the velcro tape (A) and hog - ring clips (B) inside the rear seat cushion cover, remove the seat cushion covering (C).
[Front side]
- To install, reinstall in reverse order of removal procedure.
Information
- Make sure that the connectors are connected completely.
- Replace any damaged clips (or pin-type retainers).

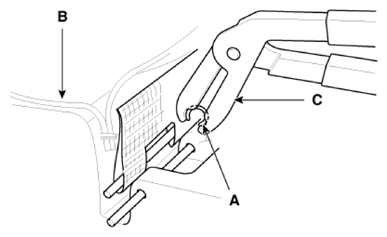

- To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A).
- Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).
