Removal And Installation

[Rear seat back assembly]

1. Remove the center seat belt (A) by pushing it with a thin, tapered metal shaft.

   Courtesy of KIA MOTORS AMERICA, INC.

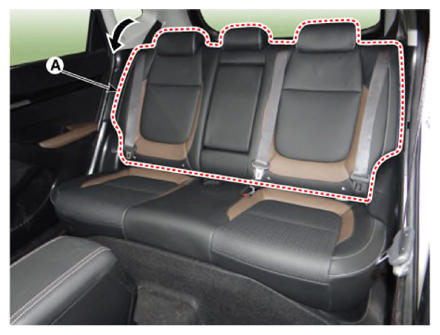

2. Pull up the rear seat back assembly (A) by pulling the stand-up lever.

   Courtesy of KIA MOTORS AMERICA, INC.

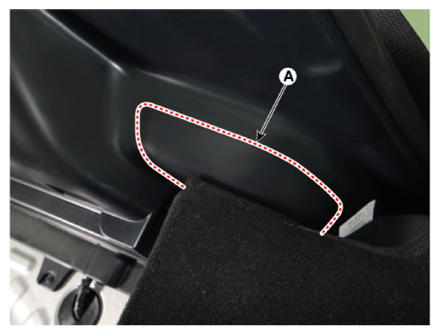

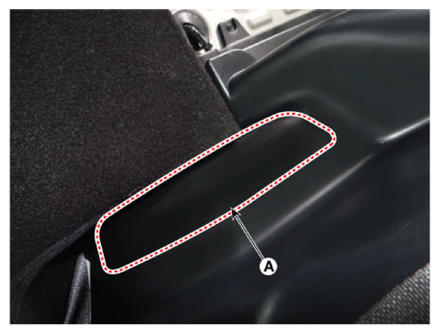

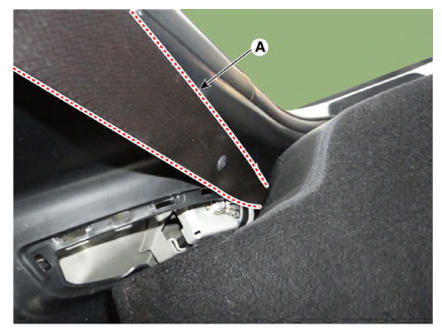

3. Using a screwdriver or remover and remove the side cover (A).

   [LH]

   Courtesy of KIA MOTORS AMERICA, INC.

   [RH]

   Courtesy of KIA MOTORS AMERICA, INC.

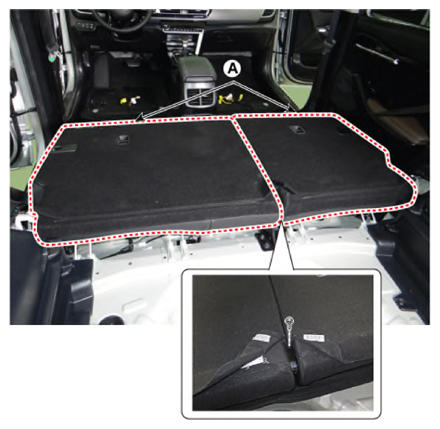

4. After loosening the mounting bolt, remove the rear seat back assembly (A).

   Tightening torque:

   16.7 - 25.3 N.m (1.7 - 2.6 Kgf.m, 12.3 - 18.8 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

   NOTE: Removal of rear seatback assembly

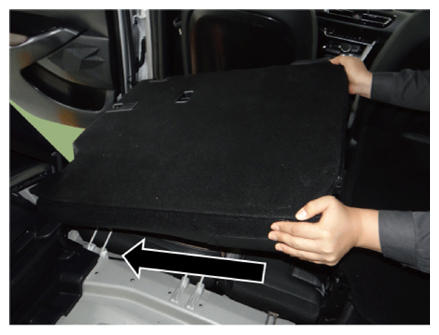

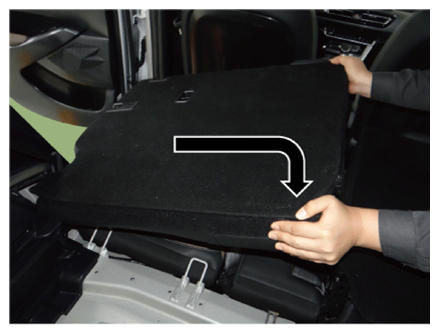

   1. Lift the rear seatback upward and then push it to door side.

      Courtesy of KIA MOTORS AMERICA, INC.

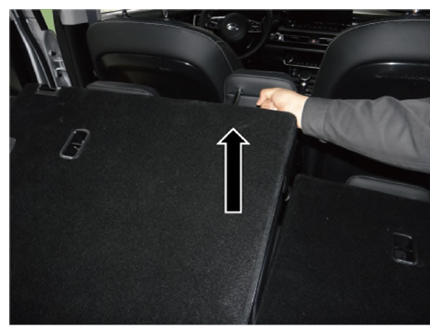

   2. Remove the rear seatback by lifting it upward after pin of the rear seatback is moved to outside sufficiently.

      Courtesy of KIA MOTORS AMERICA, INC.

5. To install, reinstall in reverse order of removal procedure.
   NOTE: Installation of rear seatback

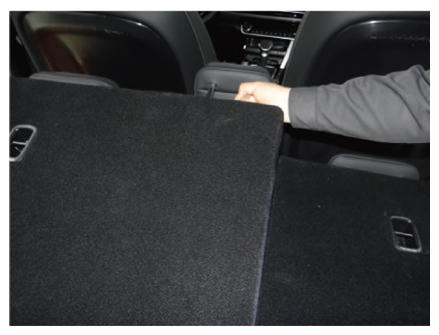

   1. Push the seat to outside while holding the center headrest stay.

      Courtesy of KIA MOTORS AMERICA, INC.

   2. Insert into the bracket hole by rising hand holding the center headrest.

      Courtesy of KIA MOTORS AMERICA, INC.

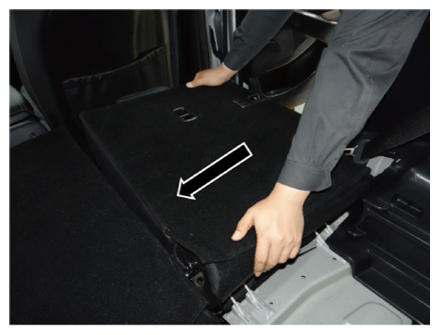

   3. Install the seat to the center hinge bracket while pulling the seat inward.

      Courtesy of KIA MOTORS AMERICA, INC.

   4. Lift the RH seat and then install it while looking at the bracket.

      Courtesy of KIA MOTORS AMERICA, INC.

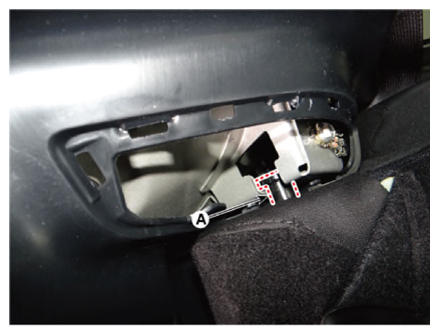

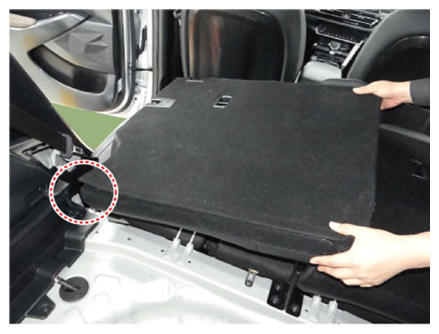

      * The side hinge pin (A) should be fully inserted into the bracket.

      Courtesy of KIA MOTORS AMERICA, INC.

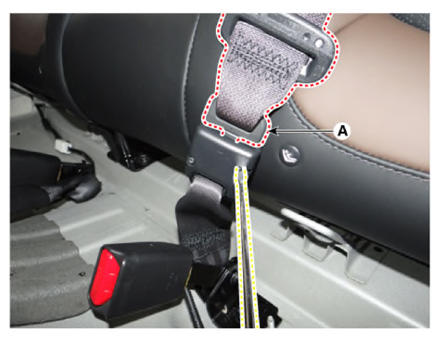

      * When assembling side, the belt (A) should be positioned at the direction of driver's seat closer than the seat pin.

      Courtesy of KIA MOTORS AMERICA, INC.

   5. Install the seat to the center hinge bracket while pushing it inward.

      Courtesy of KIA MOTORS AMERICA, INC.

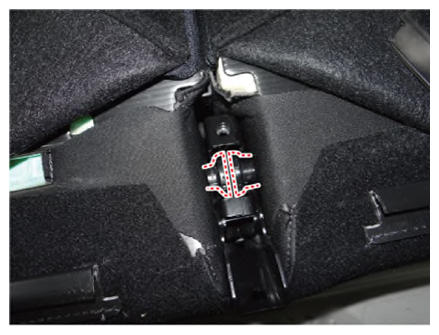

      * The center hinge pin should be fully inserted into the center hinge bracket.

      Courtesy of KIA MOTORS AMERICA, INC.

[Rear seat cushion assembly]

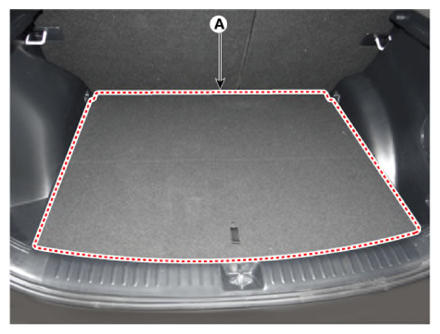

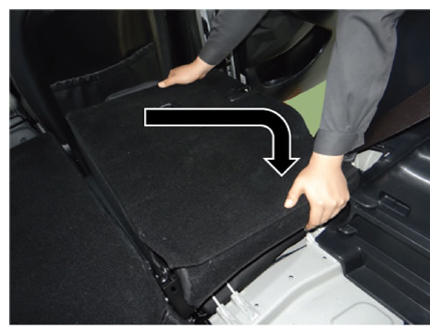

1. Remove the luggage covering board (A).

   Courtesy of KIA MOTORS AMERICA, INC.

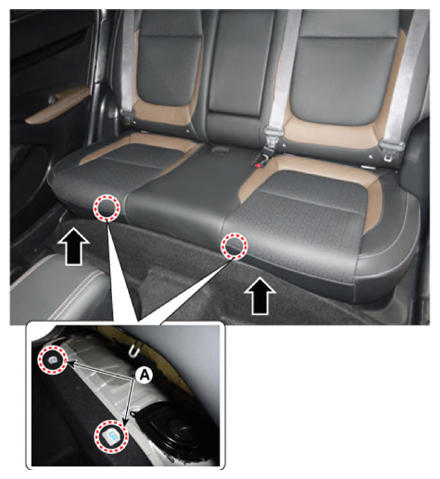

2. Remove from the grommets (A) mounted on the front of cushion and then pull the rear seat cushion upward.

   Courtesy of KIA MOTORS AMERICA, INC.

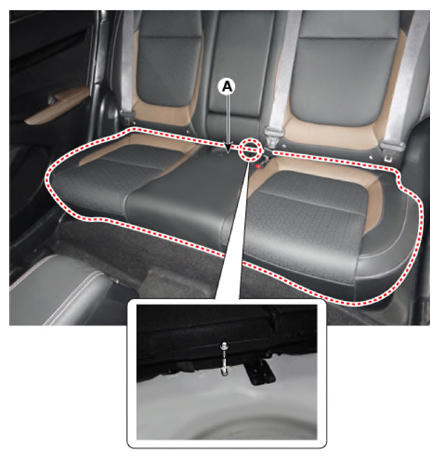

3. Loosen the mounting bolt, remove the rear seat cushion assembly (A).

   Tightening torque:

   16.7 - 25.3 N.m (1.7 - 2.6 Kgf.m, 12.3 - 18.8 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

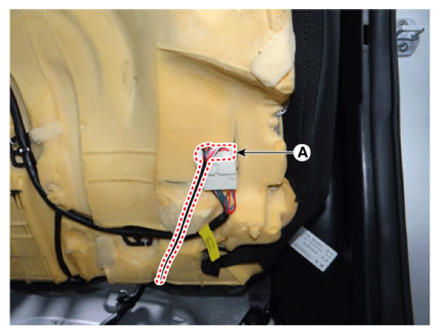

4. Disconnect the rear seat cushion extension connector (A). [Option specification]

   Courtesy of KIA MOTORS AMERICA, INC.

5. To install, reinstall in reverse order of removal procedure.
