Repair Procedures: Replacement: LH

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
• Take care not to bend or scratch the trim and panels.

1. Remove the rear seat assembly [LH].

   (Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

2. Push the lock pins, and remove the rear seat headrest (A).

   Courtesy of HYUNDAI MOTOR AMERICA

3. After loosening the mounting screws, remove the rear seat folding bezel (A).

   Courtesy of HYUNDAI MOTOR AMERICA

4. Using a screwdriver or remover, remove the rear seat belt center cover (A).

   Courtesy of HYUNDAI MOTOR AMERICA

5. After loosening the mounting screw, remove the rear seat back latch cover (A).

   Courtesy of HYUNDAI MOTOR AMERICA

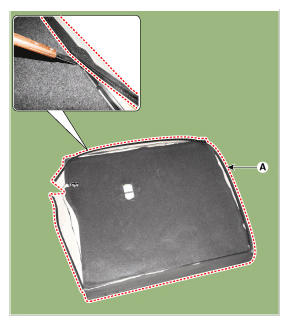

6. Using a screwdriver or remover, remove the rear seat back cover (A).

   Courtesy of HYUNDAI MOTOR AMERICA

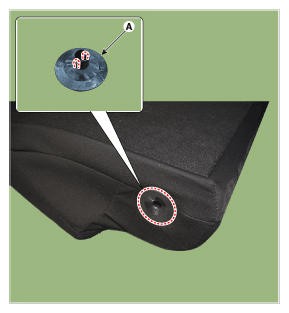

7. Using a screwdriver or remover, remove the cap (A).

   Courtesy of HYUNDAI MOTOR AMERICA

8. Pull out the rear seat headrest guides (A) while pinching both sides of the lower part of the guides, and remove them.

   Courtesy of HYUNDAI MOTOR AMERICA

   Courtesy of HYUNDAI MOTOR AMERICA

9. Remove the rear seat back cover assembly (A) from the rear seat back frame.

   Courtesy of HYUNDAI MOTOR AMERICA

10. After removing the Velcro tape (A) and hog-ring clips (B) inside the rear seat cushion cover, remove the seat cushion cover (C).

    Courtesy of HYUNDAI MOTOR AMERICA

11. To install, reverse removal procedure.

    Information

    • Make sure that the connectors are connected completely
    • Replace any damaged clips (or pin-type retainers).
    • To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A).
    • Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).

    Courtesy of HYUNDAI MOTOR AMERICA
