Rear Seat Back Assembly
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the rear seat cushion assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Remove the center seat belt (A) by pushing it with an awl.
- Pull up the rear seat back assembly (A) by pulling the stand-up lever.

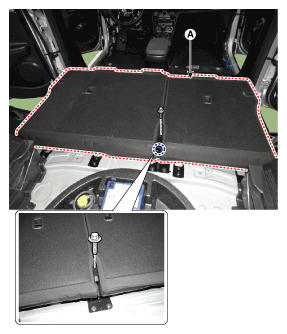

- After loosening the mounting bolts, remove the rear seat back assembly (A).
Tightening Torque:
21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb-ft)
- To install, reverse removal procedure.
