Diagnosis With GDS
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- The body electrical system can be quickly diagnosed failed parts with vehicle diagnostic system (GDS).
The diagnostic system (GDS) provides the following information.
- Self diagnosis: Checking the failure code (DTC) and display
- Current data: Checking the system input/output data state
- Actuator test: Checking the system operation condition
- Additional function: Other controlling such as he system option and zero point adjustment
- Select the "Car Model" and the system to be checked in order to check the vehicle with the tester.
- Select the "Smart Junction Block (SJB)".

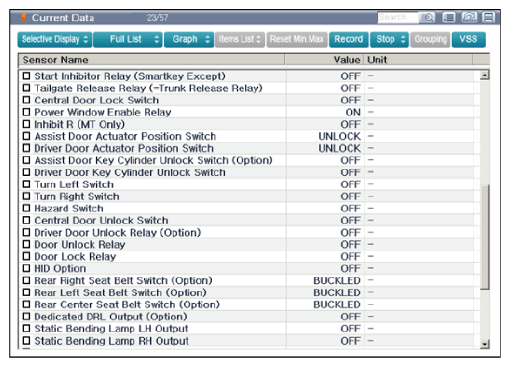

- Select the "Current Data" menu to search the current state of the input/output data.
The input/output data for the sensors corresponding to the Smart Junction Block (SJB) can be checked.

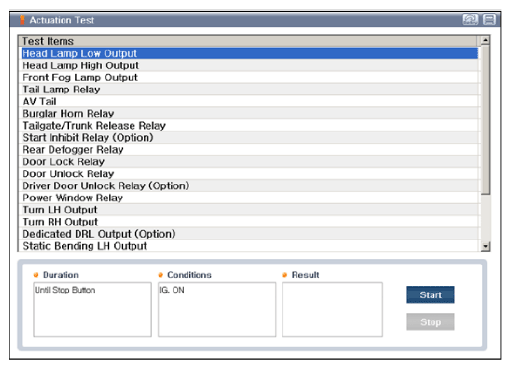

- If you will check the power door lock operation forcefully, select "Actuation Test".

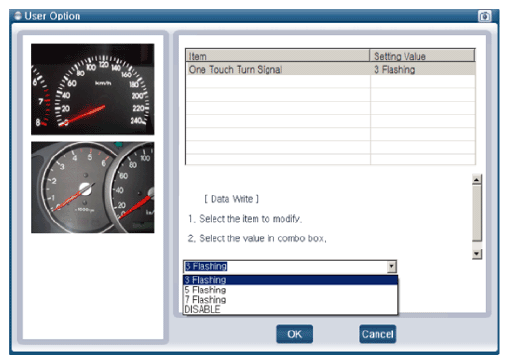

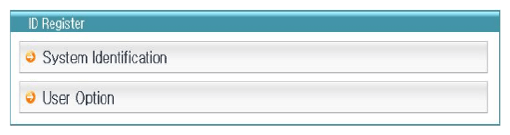

- If you want to change user option, select "User Option".
