Interior Junction Block

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

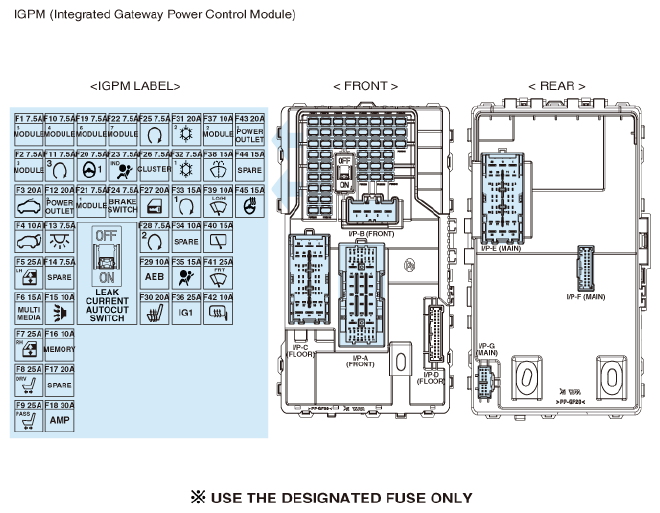

G12605664Courtesy of HYUNDAI MOTOR AMERICA

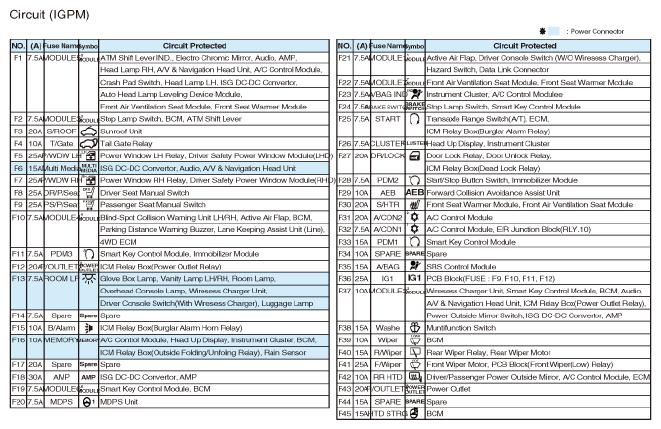

G12605665Courtesy of HYUNDAI MOTOR AMERICA
