Metal Core Block (PCB)

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

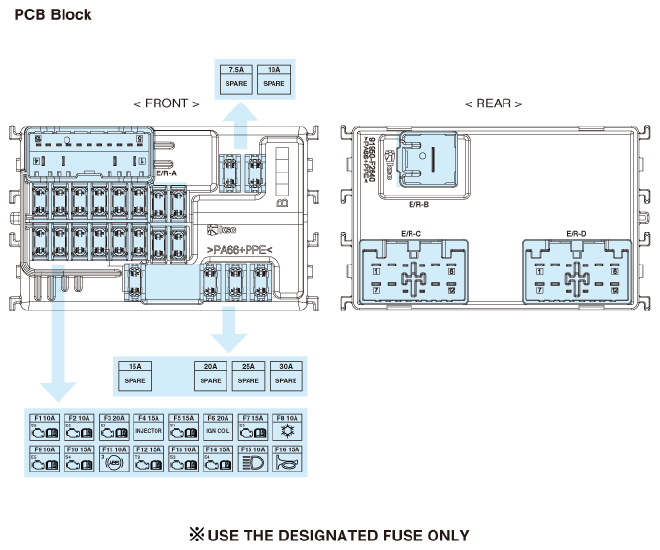

G12605650Courtesy of HYUNDAI MOTOR AMERICA

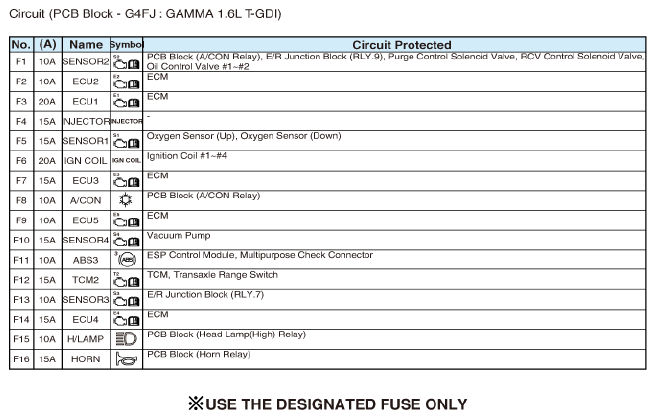

G12605651Courtesy of HYUNDAI MOTOR AMERICA

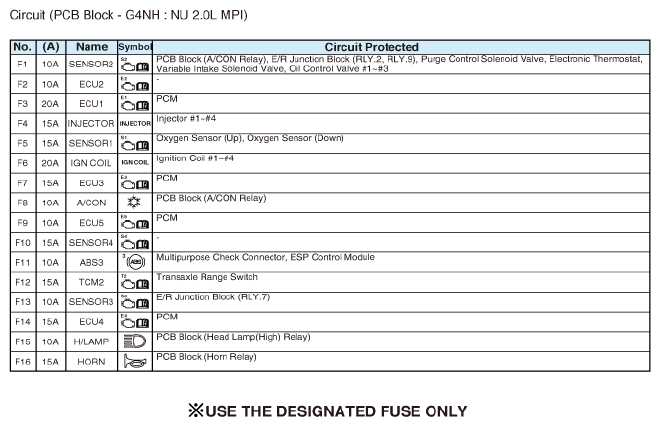

G12605652Courtesy of HYUNDAI MOTOR AMERICA

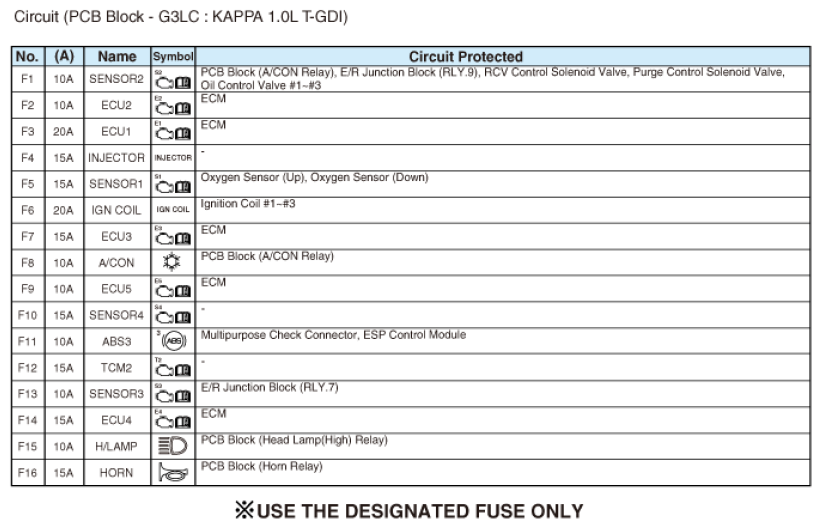

G12605653Courtesy of HYUNDAI MOTOR AMERICA
