Engine Room Junction Block
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

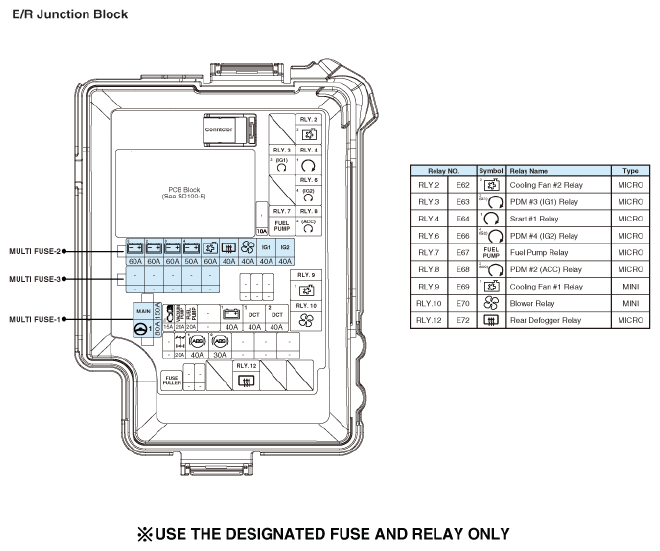

Courtesy of HYUNDAI MOTOR AMERICA ENGINE ROOM JUNCTION BLOCK RELAY IDENTIFICATION
| Relay Description |
| Cooling Fan #2 Relay |
| PDM #3 (IG1) Relay |
| Start #1 Relay |
| PDM #4 (IG2) Relay |
| Fuel Pump Relay |
| PDM #2 (ACC) Relay |
| Cooling Fan #1 Relay |
| Blower Relay |
| Rear Defogger Relay |
 Courtesy of HYUNDAI MOTOR AMERICA
|
