Ventilation Seat Unit (Front Seat Heater Unit)
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

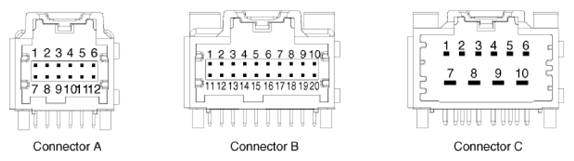

| Pin | Function | ||
|---|---|---|---|
| Connector A | Connector B | Connector C | |
| 1 | Driver ventilation switch | Driver heater indicator (Mid) | Driver cushion heater power |
| 2 | Passenger ventilation switch | Passenger heater indicator (High) | Driver seat back heater power |
| 3 | Passenger heater switch | Driver heater indicator (Low) | Passenger cushion heater power |
| 4 | Driver heater switch | Passenger heater indicator (Low) | Passenger seat back heater power |
| 5 | - | - | Driver ventilation power |
| 6 | - | - | Passenger ventilation power |
| 7 | Passenger blower speed | - | Battery (+) |
| 8 | Driver blower speed | - | Driver heater power (-) |
| 9 | Driver heater indicator (High) | Detent | Ground |
| 10 | Driver ventilation indicator (High) | IGN1 | Passenger heater power (-) |
| 11 | Passenger heater indicator (Mid) | Driver ventilation indicator (Mid) | |
| 12 | Passenger ventilation indicator (Mid) | Passenger ventilation indicator (High) | |
| 13 | Driver ventilation indicator (Low) | ||
| 14 | Passenger ventilation indicator (Low) | ||
| 15 | - | ||
| 16 | - | ||
| 17 | NTC (-) | ||
| 18 | Passenger NTC (+) | ||
| 19 | Driver NTC (+) | ||
| 20 | IGN2 | ||
