Ventilation Seat Blower

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

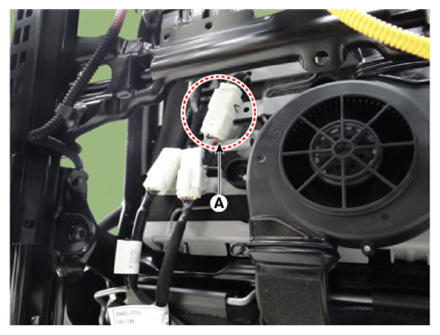

  3. Disconnect the ventilation seat blower connector (A).
    G13482031Courtesy of KIA MOTORS AMERICA, INC.

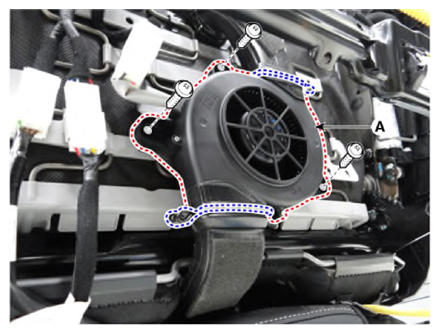

  4. Remove the ventilation seat blower (A) by loosening the screws and clips.
    G13482032Courtesy of KIA MOTORS AMERICA, INC.
