Connector And Terminal Function
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

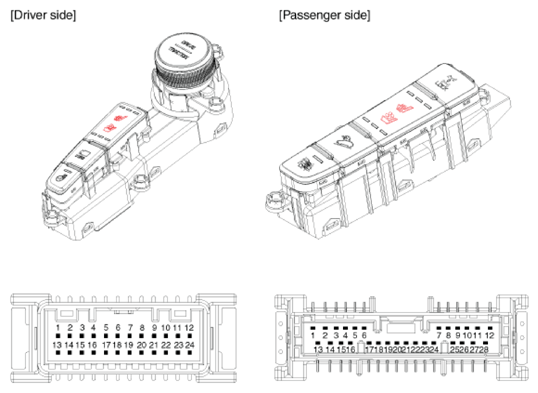

[Front Seat]
[Driver side]
| Pin | Function |
|---|---|
| 1 | - |
| 2 | IGN1 |
| 3 | Ventilation/Heater mode |
| 4 | Ventilation/Heater indicator (High) |
| 5 | Ventilation/Heater indicator (Mid) |
| 6 | Ventilation/Heater indicator (Low) |
| 7 | - |
| 8 | Ventilation mode |
| 9 | Ventilation indicator (High) |
| 10 | Ventilation indicator (Mid) |
| 11 | Ventilation indicator (Low) |
| 12 | Ground |
| 13 | Illumination (+) |
| 14 | - |
| 15 | - |
| 16 | Steering heater mode |
| 17 | Steering heater indicator |
| 18 | RVM mode |
| 19 | Drive/Terrain mode symbol |
| 20 | Grib control switch (+) |
| 21 | Grib control switch (-) |
| 22 | - |
| 23 | Detent |
| 24 | Illumination (-) |
[Passenger side]
| Pin | Function |
|---|---|
| 1 | - |
| 2 | - |
| 3 | Ventilation/Heater mode |
| 4 | Ventilation/Heater indicator (High) |
| 5 | Ventilation/Heater indicator (Mid) |
| 6 | Ventilation/Heater indicator (Low) |
| 7 | - |
| 8 | Ventilation mode |
| 9 | Ventilation indicator (High) |
| 10 | Ventilation indicator (Mid) |
| 11 | Ventilation indicator (Low) |
| 12 | - |
| 13 | - |
| 14 | Ground |
| 15 | Illumination (+) |
| 16 | - |
| 17 | PDW-F mode signal |
| 18 | DBC mode |
| 19 | 4WD mode |
| 20 | - |
| 21 | PDW-F indicator |
| 22 | - |
| 23 | - |
| 24 | - |
| 25 | - |
| 26 | - |
| 27 | - |
| 28 | Illumination (-) |

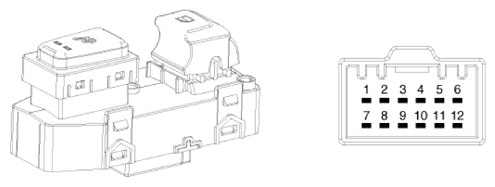

[Rear Seat]
| Pin | Function |
|---|---|
| 1 | Battery (+) |
| 2 | Heater indicator (High) |
| 3 | Window motor (Up) |
| 4 | Heater indicator (Low) |
| 5 | Window motor (Down) |
| 6 | Heater switch |
| 7 | Window motor (Down) signal |
| 8 | Ground |
| 9 | - |
| 10 | Window motor (Up) signal |
| 11 | Illumination (+) |
| 12 | Window switch |
