Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

[Front Seat]

Disconnect the negative battery terminal.
Remove the console upper cover.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

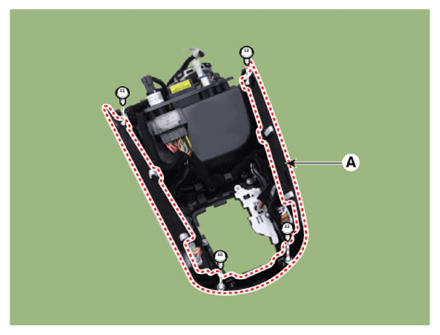

Remove the console lower cover (A) after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.

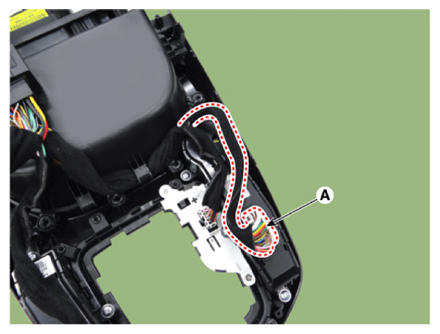

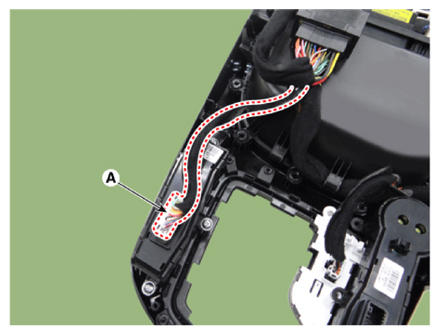

Disconnect the connector (A) from the indicator cover.
[Driver side]

Courtesy of KIA MOTORS AMERICA, INC.

[Passenger side]

Courtesy of KIA MOTORS AMERICA, INC.

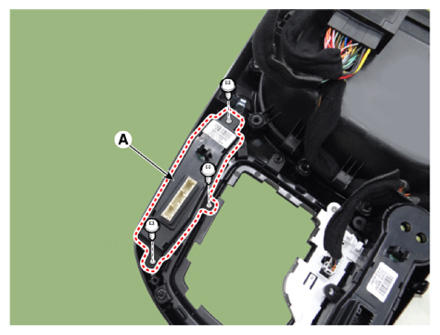

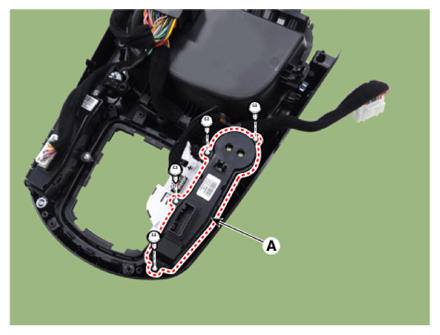

Remove the indicator cover switch (A) after loosening the mounting screws.
[Driver side]

Courtesy of KIA MOTORS AMERICA, INC.

[Passenger side]

Courtesy of KIA MOTORS AMERICA, INC.

[Rear Seat]

Disconnect the negative battery terminal.
Remove the rear power window switch.
(Refer to Power Windows - "POWER WINDOW SWITCH ")
