Repair Procedures: Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

[Front Seat]

Disconnect the negative battery terminal.
Remove the console upper cover.
(Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

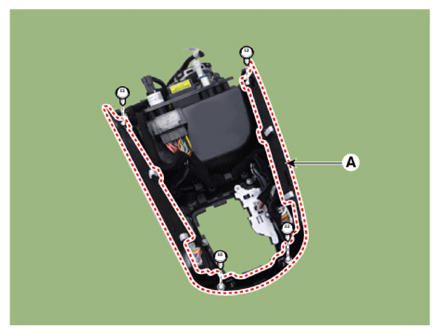

Remove the console lower cover (A) after loosening the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.

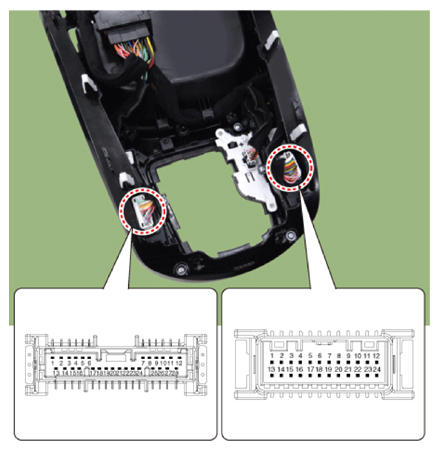

Push and hold the switch, check for continuity between signal terminal and ground terminal.

Courtesy of KIA MOTORS AMERICA, INC.

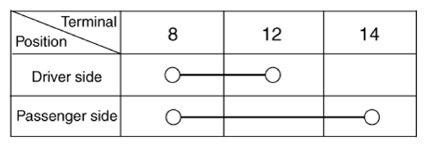

[Heater Switch]

Courtesy of KIA MOTORS AMERICA, INC.

[Ventilation Switch]

Courtesy of KIA MOTORS AMERICA, INC.

[Rear Seat]

Disconnect the negative battery terminal.
Remove the rear door trim.
(Refer to Body - "REAR DOOR TRIM ")

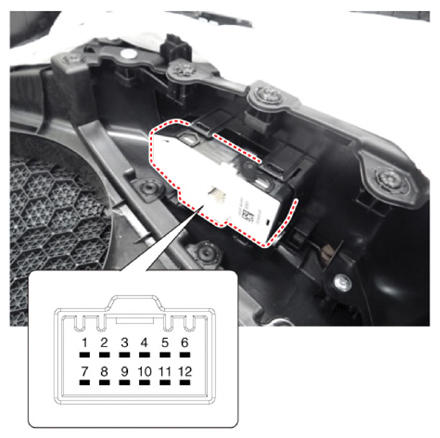

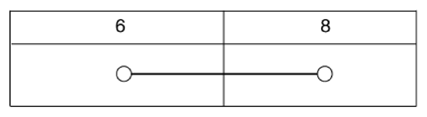

Push and hold the switch, check for continuity between signal terminal and ground terminal.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.
