Slide Motor

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

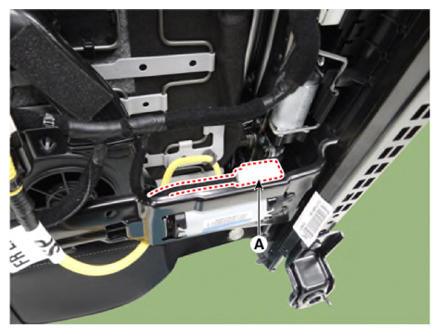

  2. Disconnect the slide motor connector (A).
    G13482054Courtesy of KIA MOTORS AMERICA, INC.

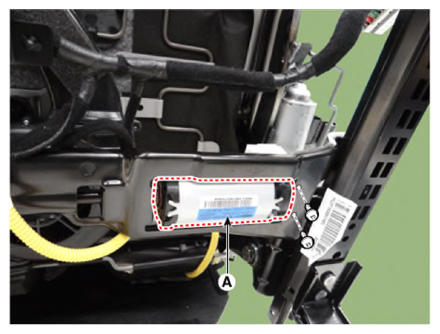

  3. Remove the slide motor (A) after loosening the mounting screws.
    G13482055Courtesy of KIA MOTORS AMERICA, INC.

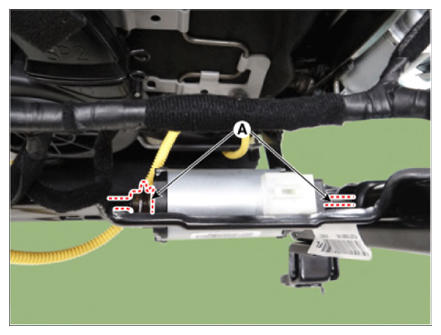

    NOTE: Insert the wire (A) fully into the slide motor.
    G13482056Courtesy of KIA MOTORS AMERICA, INC.
