Front Height Motor

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat cushion cover.

    (Refer to Body - "FRONT SEAT CUSHION COVER ")

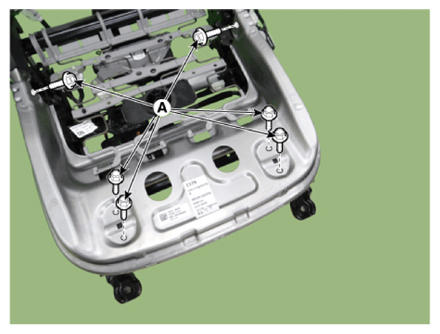

  2. Loosen the front seat cushion frame mounting bolts (A).

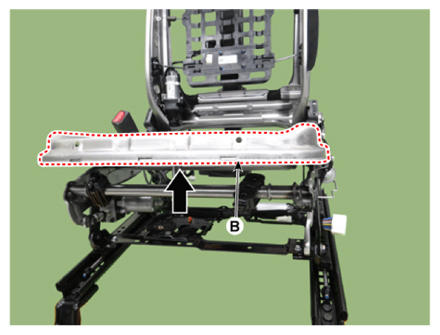

  3. Separate the front seat cushion frame (B) in the direction of arrow.
    G13482049Courtesy of KIA MOTORS AMERICA, INC.
    G13482050Courtesy of KIA MOTORS AMERICA, INC.

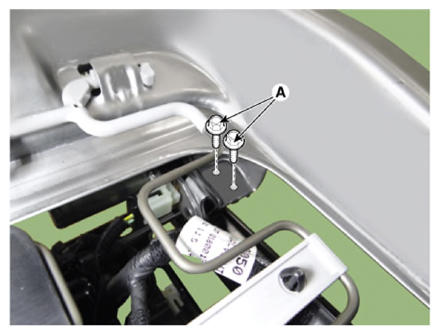

  4. Loosen the front height motor mounting bolts (A).
    G13482051Courtesy of KIA MOTORS AMERICA, INC.

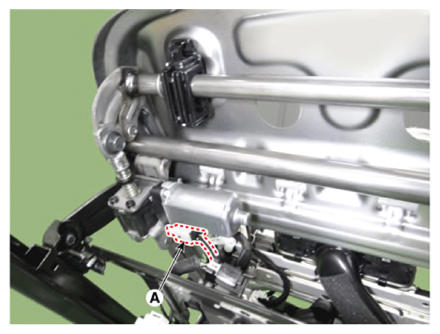

  5. Disconnect the front height motor connector (A).
    G13482052Courtesy of KIA MOTORS AMERICA, INC.

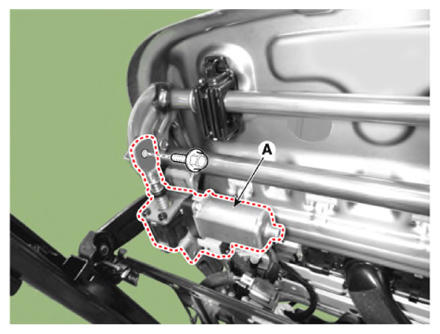

  6. Remove the front height motor (A) after loosening the mounting bolt.
    G13482053Courtesy of KIA MOTORS AMERICA, INC.
