Repair Procedures: Inspection
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal.
- Disconnect the motor connector after removing the seat.

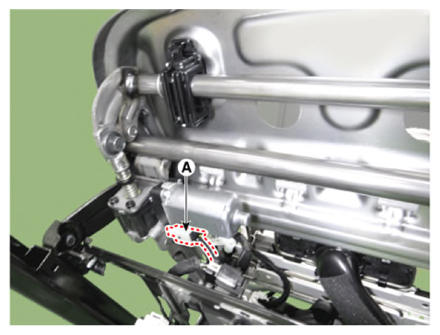

- Front height motor
 Courtesy of KIA MOTORS AMERICA, INC.
|

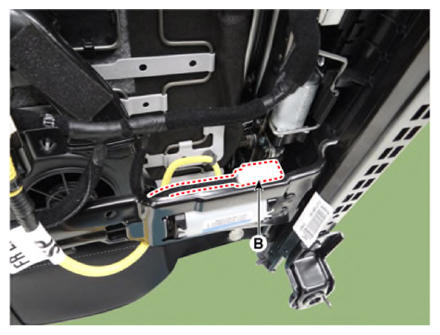

- Slide motor
 Courtesy of KIA MOTORS AMERICA, INC.
|

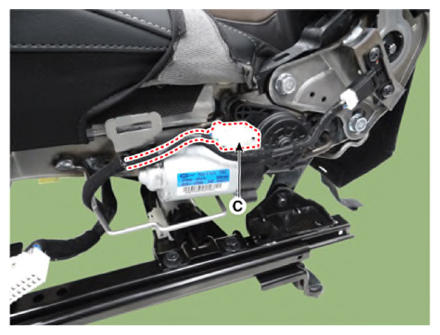

- Rear height motor
 Courtesy of KIA MOTORS AMERICA, INC.
|

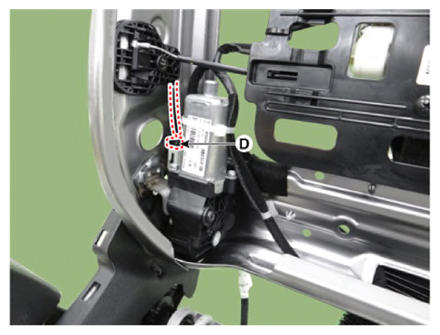

- Reclining motor
 Courtesy of KIA MOTORS AMERICA, INC.
|

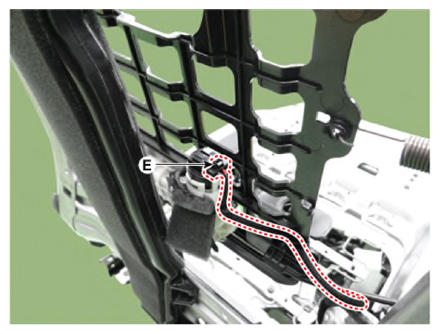

- Lumber support motor
 Courtesy of KIA MOTORS AMERICA, INC.
|

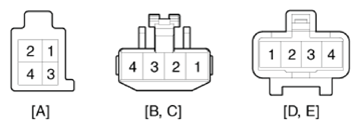

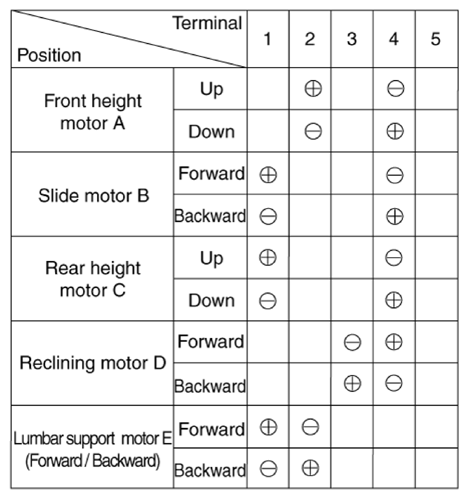

- When the battery power is supplied to the motor connector, check the motor for smooth operation.
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
