Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat outer shield cover.

    (Refer to Body - "FRONT SEAT OUTER SHIELD COVER ")

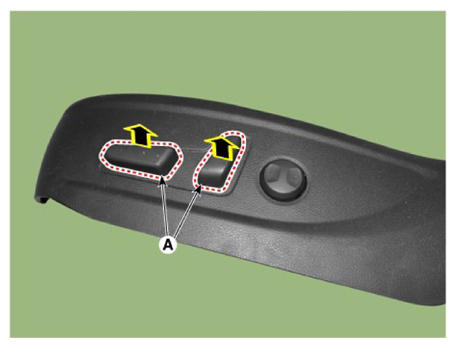

  2. Remove the knob (A) from the power seat control switch.
    G13482038Courtesy of KIA MOTORS AMERICA, INC.

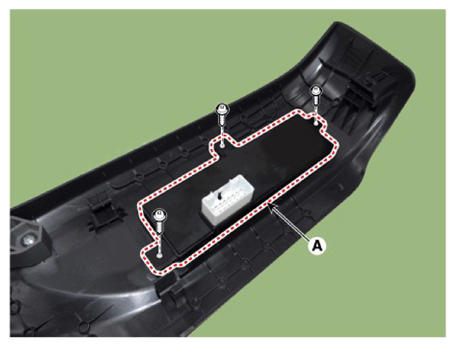

  3. Remove the power seat control switch (A) after loosening the screws.
    G13482039Courtesy of KIA MOTORS AMERICA, INC.
