Repair Procedures: Inspection

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat shield outer cover.

    (Refer to Body - "FRONT SEAT SHIELD OUTER COVER ")

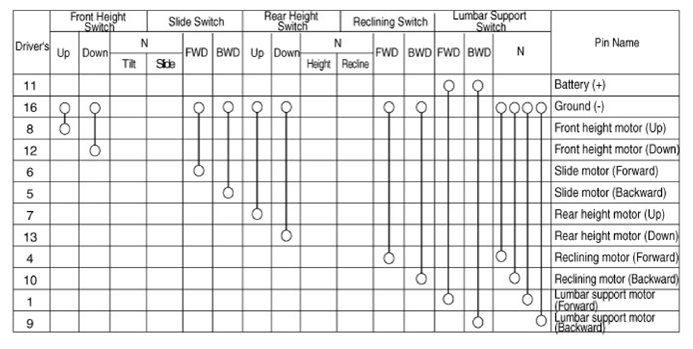

  2. When the battery power is supplied to the power seat control switch connector, check the motor for smooth operation.
    G13482037Courtesy of KIA MOTORS AMERICA, INC.
