Rear Seat Heater Unit
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

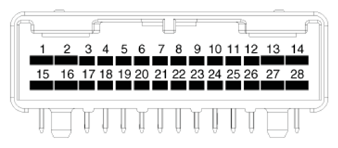

| Pin | Function |
|---|---|
| 1 | Battery (+) |
| 2 | Heater power (+)_LH |
| 3 | IGN1 |
| 4 | CAN (Low) |
| 5 | CAN (High) |
| 6 | - |
| 7 | Heater indicator (High)_LH |
| 8 | - |
| 9 | Heater indicator (Low)_LH |
| 10 | Heater switch_LH |
| 11 | Heater NTC (+)_LH |
| 12 | Heater NTC (-)_LH |
| 13 | Heater power (-)_LH |
| 14 | Ground |
| 15 | Battery (+) |
| 16 | Heater power (+)_RH |
| 17 | - |
| 18 | - |
| 19 | - |
| 20 | - |
| 21 | Heater indicator (High)_RH |
| 22 | - |
| 23 | Heater indicator (Low)_RH |
| 24 | Heater switch_RH |
| 25 | Heater NTC (+)_RH |
| 26 | Heater NTC (-)_RH |
| 27 | Heater power (-)_RH |
| 28 | Ground |
