Front Seat Heater Unit
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

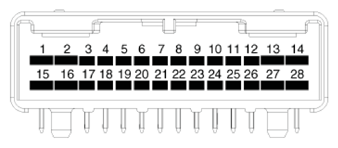

| Pin | Function |
|---|---|
| 1 | Battery (+) |
| 2 | Driver heater power (+) |
| 3 | IGN1 |
| 4 | - |
| 5 | - |
| 6 | - |
| 7 | Driver heater indicator (High) |
| 8 | Driver heater indicator (Mid) |
| 9 | Driver heater indicator (Low) |
| 10 | Driver heater switch |
| 11 | Driver heater NTC (+) |
| 12 | Driver heater NTC (-) |
| 13 | Driver heater power (-) |
| 14 | Ground |
| 15 | Battery (+) |
| 16 | Passenger heater power (+) |
| 17 | IGN2 |
| 18 | - |
| 19 | Detent |
| 20 | - |
| 21 | Passenger heater indicator (High) |
| 22 | Passenger heater indicator (Mid) |
| 23 | Passenger heater indicator (Low) |
| 24 | Passenger heater switch |
| 25 | Passenger heater NTC (+) |
| 26 | Passenger heater NTC (-) |
| 27 | Passenger heater power (-) |
| 28 | Ground |
