Rear Seat Heater Unit

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Remove the rear seat cushion assembly.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

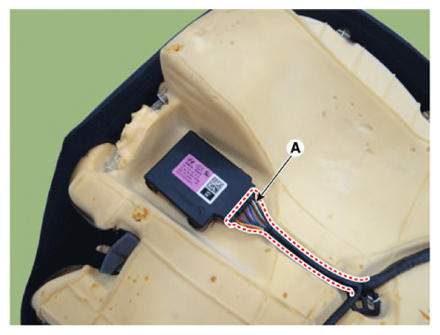

  3. Disconnect the rear seat heater unit connector (A).
    G13482013Courtesy of KIA MOTORS AMERICA, INC.

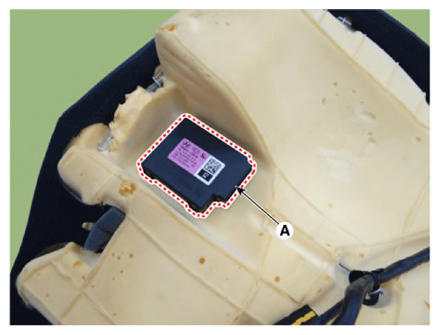

  4. Remove the rear seat heater unit (A).
    G13482014Courtesy of KIA MOTORS AMERICA, INC.
