Front Seat Heater Unit

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

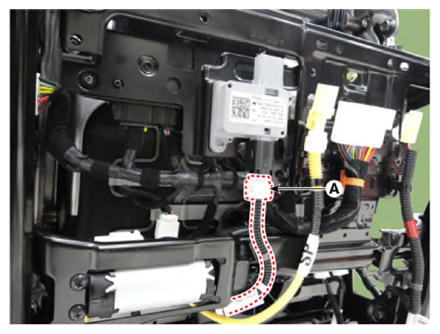

  2. Disconnect the occupant detection system (ODS) sensor connector (A).
    G13482009Courtesy of KIA MOTORS AMERICA, INC.

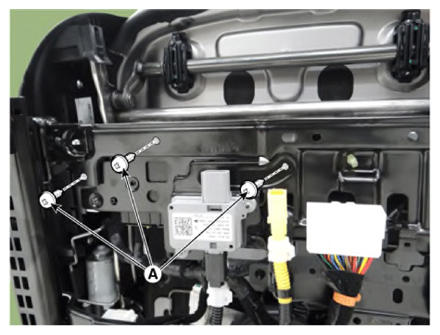

  3. Remove the front seat heater unit by loosening the screws (A).
    G13482010Courtesy of KIA MOTORS AMERICA, INC.

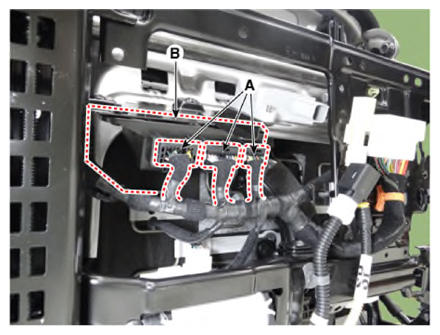

  4. Remove the front seat heater unit bracket (B) after disconnecting the connectors (A).
    G13482011Courtesy of KIA MOTORS AMERICA, INC.

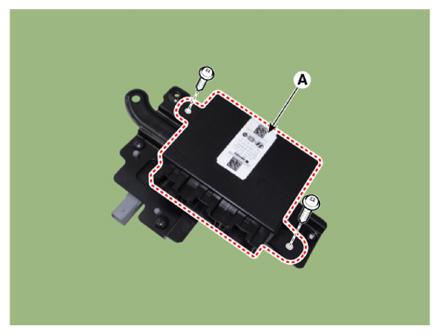

  5. Remove the front seat heater unit (A) by loosening the screws.
    G13482012Courtesy of KIA MOTORS AMERICA, INC.
