Rear Seat Heater
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

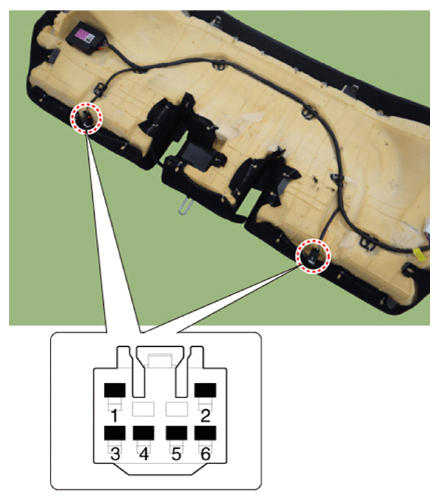

- Check for continuity and measure the resistance between terminals No 3 and No 6.
Standard value:
3.43Ω±10%/22±1°C
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Pin |
Function |
| 1 |
- |
| 2 |
- |
| 3 |
Heater (+) |
| 4 |
NTC (+) |
| 5 |
NTC (-) |
| 6 |
Heater (-) |
