Driver/Passenger Seat Heater
WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

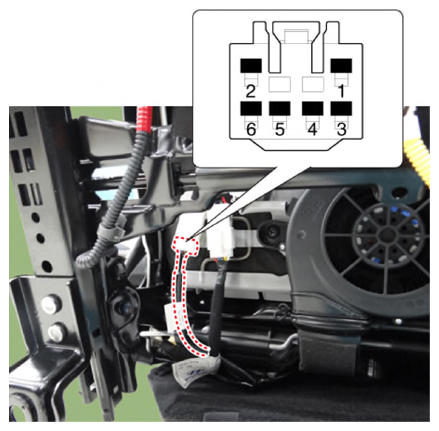

- Check for continuity and measure the resistance between terminals.
Standard value
Driver/Passenger (cushion): 3.38Ω±10%/22±1°C
Driver/Passenger (back): 3.47Ω±10%/22±1°C
| Pin | Function | |
|---|---|---|
| Heater | Heater + Ventilation | |
| 1 | - | NTC (+) |
| 2 | - | - |
| 3 | Heater (+) | NTC (-) |
| 4 | NTC (+) | Cushion heater (+) |
| 5 | NTC (-) | Back heater (+) |
| 6 | Heater (-) | Cushion/Back heater (-) |
