Repair Procedures: Removal

WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

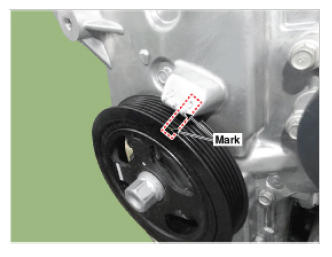

  1. Turn the crankshaft pulley clockwise, and align its groove with the timing mark of the timing chain cover.
    G12593078Courtesy of HYUNDAI MOTOR AMERICA
  2. Remove the timing chain cover & oil pump assembly.

    (Refer to Timing System - "TIMING CHAIN COVER & OIL PUMP ASSEMBLY ")

  3. Align the timing marks of the CVVT sprockets with the upper surface of the cylinder head to make No. 1 cylinder be positioned at TDC.
    G12593079Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the hydraulic tensioner (A).
    G12593080Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Before removing the tensioner, fix the piston of the tensioner with a pin through the hole (B) at compressed position.
  5. Remove the timing chain tensioner arm (A) and guide (B).
    G12593081Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the timing chain (A).
    G12593082Courtesy of HYUNDAI MOTOR AMERICA
