Repair Procedures: Installation
WARNING: This page is about a different car, the 2021 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Install the timing chain cover & oil pump assembly.
- Timing chain cover & oil pump assembly before installing, remove the hardened sealant from the cylinder block and ladder frame surface.

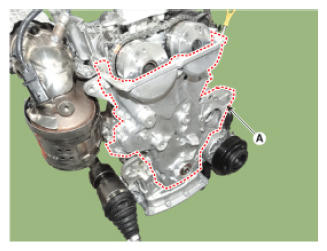

- Apply the liquid gasket (TB 1217H or LOCTITE 5900H) on the surface between the cylinder head and the cylinder block.
Width: 3 - 5 mm (0.1181 - 0.1969 in.)

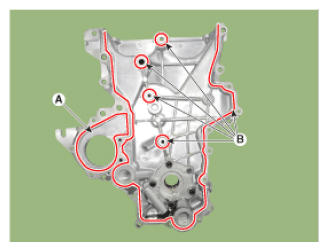

- Apply the liquid gasket, THREE BOND 1282B or THREE BOND 1216E on the water pump contact parts (A) of the timing chain cover and THREE BOND 1217H or LOCTITE 5900H on the rest parts (B).
Reassemble the cover within 5 minutes.
Width: 3.5 - 4.5 mm (0.1378 - 0.1772 in)
NOTE:- Remove oil or dust on the surface surely.
- Align the dowel pin of the cylinder block and the holes of the timing chain cover & oil pump assembly.
- Tighten the bolts to install the timing chain cover (A).

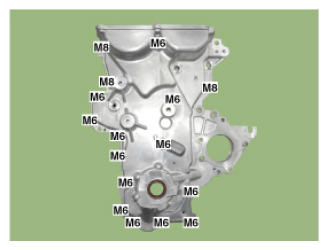

Tightening torque
M8 bolts:
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)
M6 bolts:
9.8 - 11.8 Nm (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
NOTE:- Do not start the engine or perform pressure test within 30 minutes after assembling the timing chain cover & oil pump assembly.
- Install in the reverse order of removal.
